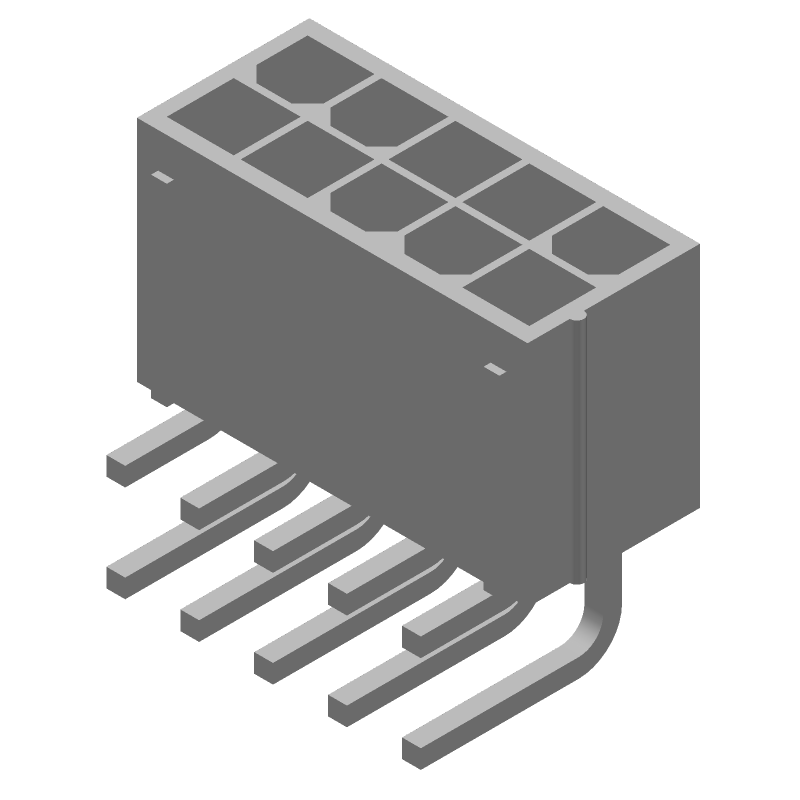

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1-1586042-0 by TE Connectivity
Results Overview of 1-1586042-0 by TE Connectivity
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
1-1586042-0 Information
1-1586042-0 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1-1586042-0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95Y4812
|
Newark | Headers&wire Housings 10P Val-U-Lok R/A Hdr V0 |Amp Te Connectivity 1-1586042-0 RoHS: Not Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.7820 / $0.9160 | Buy Now |
|
DISTI #
1-1586042-0-ND
|
DigiKey | CONN HEADER R/A 10POS 4.2MM Min Qty: 1 Lead time: 16 Weeks Container: Tray |
771 In Stock |
|
$0.6411 / $1.2300 | Buy Now |
|
DISTI #
1-1586042-0
|
Avnet Americas | Conn Power PIN 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Tray - Bulk (Alt: 1-1586042-0) RoHS: Compliant Min Qty: 1700 Package Multiple: 1700 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
$0.6240 / $0.6370 | Buy Now |
|
DISTI #
571-1-1586042-0
|
Mouser Electronics | Headers & Wire Housings 10P VAL-U-LOK R/A HDR V0 RoHS: Compliant | 0 |
|
$0.6720 / $1.2300 | Order Now |
|
DISTI #
70041525
|
RS | HEADER, RIGHT ANGLE, VAL-U-LOK, 10 POS, DUAL ROW, UL94V-0, W/O PEGS Min Qty: 1700 Package Multiple: 1 Container: Bulk | 0 |
|
$1.2100 / $1.5200 | RFQ |
|
DISTI #
AMP1-1586042-0
|
Heilind Electronics | 10P VAL-U-LOK R/A HDR V0 | Americas - 0 in Stock |
|
$0.6184 / $0.7175 | Buy Now |
|
|
Onlinecomponents.com | 10P VAL-U-LOK R/A HDR V0 RoHS: Compliant | 0 |
|
$0.6500 / $0.9470 | Buy Now |
|
DISTI #
1-1586042-0
|
TTI | Headers & Wire Housings 10P VAL-U-LOK R/A HDR V0 Min Qty: 1700 Package Multiple: 170 Container: Tray | Americas - 0 |
|
$0.5900 / $0.7400 | Buy Now |
|
DISTI #
AMP1-1586042-0
|
Interstate Connecting Components | 10P VAL-U-LOK R/A HDR V0 | 0 |
|
$0.6184 / $0.7175 | Buy Now |
|
DISTI #
000000000001005375
|
Sager | Headers & Wire Housings 10P VAL-U-LOK R/A HDR V0 Min Qty: 1700 | 0 |
|
$0.6576 | Buy Now |
Part Details for 1-1586042-0
1-1586042-0 CAD Models
1-1586042-0 Part Data Attributes
|
|
1-1586042-0
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
1-1586042-0
TE Connectivity
10P VAL-U-LOK R/A HDR V0
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | VAL-U-LOK | |
| Body Breadth | 0.51 inch | |
| Body Depth | 0.386 inch | |
| Body Length | 0.874 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 50 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 6.672 N | |
| Insulation Diameter-Min | 2.39 inch | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYAMIDE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 9A | |
| Mating Contact Pitch | 0.165 inch | |
| Mating Contact Row Spacing | 0.165 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | GUIDE SLOT | |
| Mounting Option 2 | LATCHING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 5.5118 mm | |
| Panel Mount | NO | |
| Plating Thickness | 80u inch | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 9 A | |
| Reference Standard | CSA, UL | |
| Terminal Length | 0.14 inch | |
| Terminal Pitch | 4.2 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 10 | |
| UL Flammability Code | 94V-0 |
1-1586042-0 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
-
Yes, the 1-1586042-0 connector is designed to withstand high-vibration environments and meets the IEC 61373 standard for vibration resistance.
-
Yes, the 1-1586042-0 connector is rated for outdoor use and can withstand exposure to moisture and humidity, but it's recommended to use a sealant or conformal coating to ensure IP67 rating.
-
The maximum operating temperature for the 1-1586042-0 connector is 125°C (257°F).
-
It's not recommended to use a wire gauge that's not specified in the datasheet, as it may affect the connector's performance and reliability. However, if you must use a different gauge, consult with TE Connectivity's technical support for guidance.
