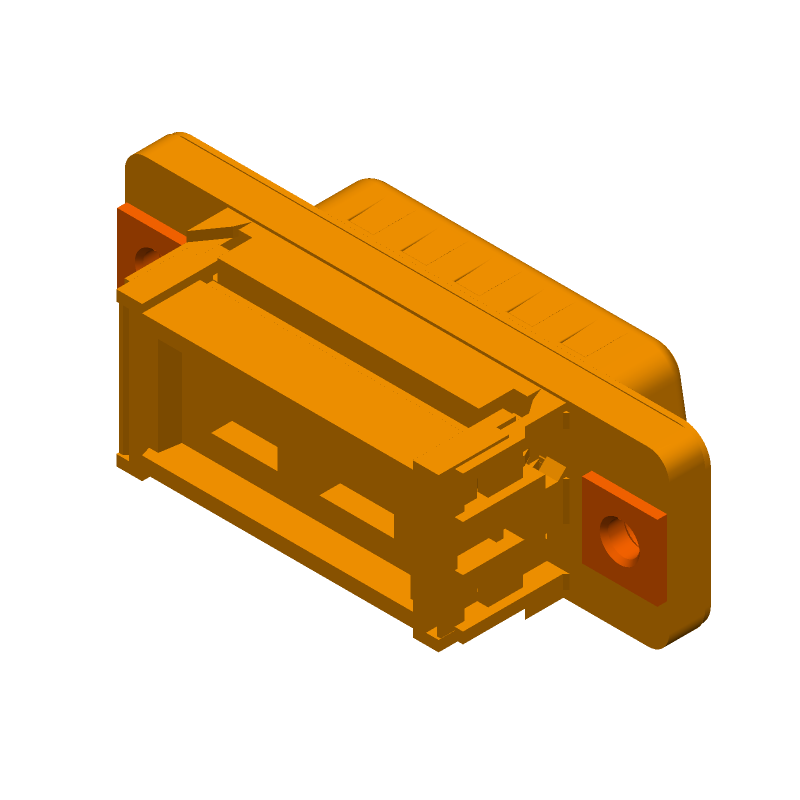

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 09662286701 by HARTING Technology Group
Results Overview of 09662286701 by HARTING Technology Group
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
09662286701 Information
09662286701 by HARTING Technology Group is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 09662286701
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44J5938
|
Newark | D-Sub 15Pin Male Idc, M3, Pl2 Rohs Compliant: Yes |Harting 09662286701 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.3900 / $14.0200 | Buy Now |
|
DISTI #
09662286701-ND
|
DigiKey | CONN D-SUB PLG 15POS PNL MNT IDC Min Qty: 100 Lead time: 8 Weeks Container: Bulk | Temporarily Out of Stock |
|
$9.9045 | Buy Now |
|
DISTI #
617-09662286701
|
Mouser Electronics | D-Sub Standard Connectors D-Sub 15pin male IDC, M3, PL2 RoHS: Compliant | 0 |
|
$9.8900 / $9.9100 | Order Now |
|
DISTI #
70738547
|
RS | D SUB SV MA IDC 15 AU2 with M3 nut Min Qty: 100 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$23.1700 / $25.1900 | RFQ |
|
DISTI #
HRT09662286701
|
Heilind Electronics | D-SUB 15PIN MALE IDC, M3, PL2 | Americas - 0 in Stock |
|
Buy Now |
Part Details for 09662286701
09662286701 CAD Models
09662286701 Part Data Attributes
|
|
09662286701
HARTING Technology Group
Buy Now
Datasheet
|
Compare Parts:
09662286701
HARTING Technology Group
D Subminiature Connector, 15 Contact(s), Male, IDC Terminal,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARTING ELECTRONICS GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | HARTING | |
| Additional Feature | STANDARDS: DIN 41652; IEC 60807 | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| DIN Conformance | YES | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | YES | |
| Insulator Material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Type | CABLE AND PANEL | |
| Option | GENERAL PURPOSE | |
| Shell Material | STEEL | |
| Shell Size | 2/A | |
| Termination Type | IDC | |
| Total Number of Contacts | 15 | |
| UL Flammability Code | 94V-0 |
