09185406904 by: HARTING Technology Group

Board Euro Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Beige Insulator, Receptacle,

Part Details for 09185406904 by HARTING Technology Group

Results Overview of 09185406904 by HARTING Technology Group

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

09185406904 Information

09185406904 by HARTING Technology Group is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 09185406904

Part # Distributor Description Stock Price Buy
DISTI # 1195-1743-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 8 Weeks Container: Bulk 175
In Stock
  • 1 $3.9500
  • 50 $2.9982
  • 100 $2.8551
  • 500 $2.5486
  • 1,000 $2.4270
$2.4270 / $3.9500 Buy Now
DISTI # 617-09-18-540-6904
Mouser Electronics Headers & Wire Housings 40P MALE STRT IDC LONG LEVERS RoHS: Compliant 555
  • 1 $3.8500
  • 10 $3.4800
  • 25 $3.3700
  • 50 $2.9900
  • 100 $2.8500
  • 1,000 $2.4200
  • 2,500 $2.3900
$2.3900 / $3.8500 Buy Now
DISTI # V36:1790_06766015
Arrow Electronics Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2422 Americas - 200
  • 1 $3.8030
  • 10 $3.4450
  • 25 $3.3380
  • 50 $2.9180
  • 100 $2.4530
  • 1,000 $2.2320
  • 2,500 $2.2020
$2.2020 / $3.8030 Buy Now
DISTI # P40:2555_16678415
Arrow Electronics Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 34 Package Multiple: 1 Europe - 194
  • 37 $3.0798
  • 50 $2.7352
  • 100 $2.3420
  • 1,000 $2.1495
  • 2,500 $2.1231
$2.1231 / $3.0798 Buy Now
DISTI # E02:0323_00177597
Arrow Electronics Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Europe - 30
  • 1 $3.8510
  • 10 $3.4882
  • 25 $3.3807
  • 50 $2.9552
  • 100 $2.4850
  • 1,000 $2.2609
  • 2,500 $2.2306
$2.2306 / $3.8510 Buy Now
DISTI # 70428180
RS Connector, Wt 10 g, 40 Contacts, SEK Standard Series Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 50
  • 1 $4.3500
  • 25 $4.0000
  • 50 $3.7400
  • 100 $3.5400
  • 250 $3.3500
$3.3500 / $4.3500 Buy Now
DISTI # HRT09185406904
Heilind Electronics SEK-18 SV MA STD STR29 RLG 40 P PL2 Americas - 22 in Stock
  • 1 $3.3772
  • 30 $3.3772
$3.3772 Buy Now
DISTI # 87662489
Verical Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2422 Americas - 200
  • 3 $3.8030
  • 10 $3.4450
  • 25 $3.3380
  • 50 $2.9180
  • 100 $2.4530
  • 1,000 $2.2320
  • 2,500 $2.2020
$2.2020 / $3.8030 Buy Now
DISTI # 17209711
Verical Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 30
  • 3 $3.8558
  • 10 $3.4926
  • 25 $3.3850
  • 50 $2.9589
  • 100 $2.4880
  • 1,000 $2.2637
  • 2,500 $2.2334
$2.2334 / $3.8558 Buy Now
DISTI # 09185406904
TTI Headers & Wire Housings 40P MALE STRT IDC LONG LEVERS RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Bulk Americas - 26
In Stock
  • 2 $3.2700
  • 10 $2.9200
  • 50 $2.7700
  • 100 $2.6200
  • 150 $2.5700
  • 250 $2.5200
  • 500 $2.4000
$2.4000 / $3.2700 Buy Now
DISTI # 09185406904
TME Connector: IDC, socket, male, PIN: 40, straight, THT, 2.54mm, SEK Min Qty: 50 0
  • 50 $2.6900
$2.6900 RFQ
DISTI # HRT09185406904
Interstate Connecting Components SEK-18 SV MA STD STR29 RLG 40 P PL2 7
  • 1 $3.3772
  • 30 $3.3772
$3.3772 Buy Now
DISTI # 09185406904
Avnet Abacus SEK 18 MALE SOLDPIN 29 LL (Alt: 09185406904) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 5 Weeks, 0 Days Abacus - 0
Buy Now
New Advantage Corporation 40 Position Header Connector 0.100 (2.54mm) Through Hole RoHS: Compliant Min Qty: 1 Package Multiple: 10 2060
  • 60 $3.1700
  • 2,060 $2.9200
$2.9200 / $3.1700 Buy Now

Part Details for 09185406904

09185406904 CAD Models

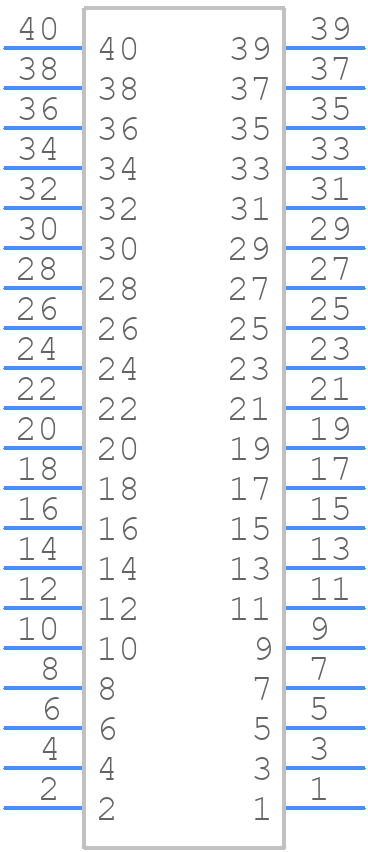

  • Part Symbol

    Part Symbol

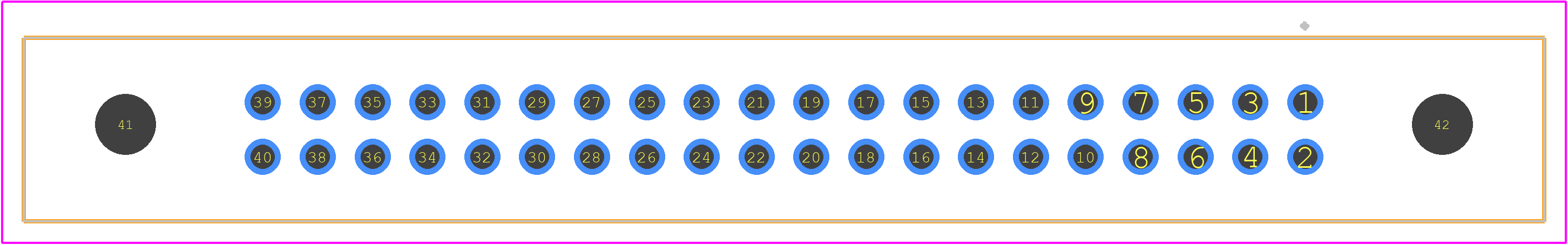

  • Footprint

    footprint

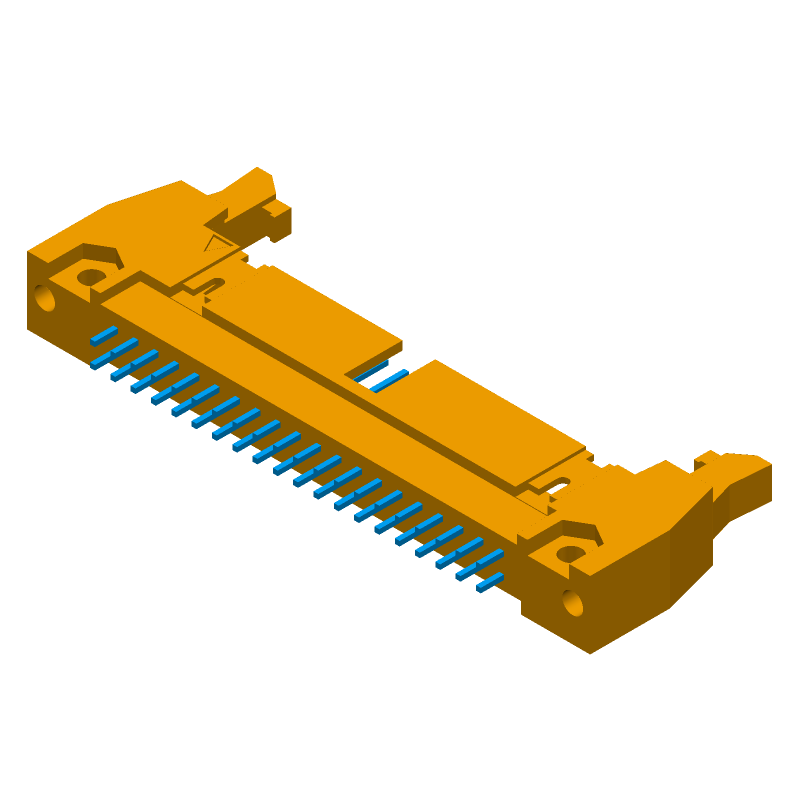

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

09185406904 Part Data Attributes

Parametric Data
09185406904 HARTING Technology Group
Buy Now Datasheet
Compare Parts:
09185406904 HARTING Technology Group Board Euro Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Beige Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HARTING ELECTRONICS GMBH & CO KG
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer HARTING
Additional Feature STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Board Mounting Option HOLE .099-.111
Body Breadth 0.331 inch
Body Depth 0.681 inch
Body Length 3.287 inch
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination NOT APPLICABLE
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance YES
Dielectric Withstanding Voltage 1000VAC V
Durability 200 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color BEIGE
Insulator Material POLYBUTYLENE TEREPHTHALATE
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Polarization Key CTR W/GUIDE SLOTS
Rated Current (Signal) 1 A
Reference Standard UL
Terminal Length 0.114 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0
