09185346324 by: HARTING Technology Group

Board Euro Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator, Receptacle,

Part Details for 09185346324 by HARTING Technology Group

Results Overview of 09185346324 by HARTING Technology Group

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

09185346324 Information

09185346324 by HARTING Technology Group is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 09185346324

Part # Distributor Description Stock Price Buy
DISTI # 96F2694
Newark Wire-Board Connector Male, 34Pos, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:34Contacts, Contact Termination Type:Through Hole, Product Range:Sek 18 Series Rohs Compliant: Yes |Harting 09185346324 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 4
  • 1 $0.6650
  • 10 $0.6650
  • 25 $0.6650
  • 50 $0.6650
  • 100 $0.6650
  • 250 $0.6650
  • 500 $0.6650
  • 1,000 $0.6650
$0.6650 Buy Now
DISTI # 1195-1731-ND
DigiKey CONN HEADER VERT 34POS 2.54MM Min Qty: 1 Lead time: 8 Weeks Container: Tray 165
In Stock
  • 1 $3.8300
  • 10 $3.2510
  • 100 $2.7628
  • 500 $2.4662
  • 1,000 $2.3486
$2.3486 / $3.8300 Buy Now
DISTI # 617-09-18-534-6324
Mouser Electronics Headers & Wire Housings 34P MALE STRT IDC LOW PROFILE HDR RoHS: Compliant 693
  • 1 $3.7500
  • 10 $3.2600
  • 100 $2.7600
  • 1,000 $2.3400
$2.3400 / $3.7500 Buy Now
DISTI # E02:0323_00177533
Arrow Electronics Conn Shrouded Header (4 Sides) HDR 34 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2505 Europe - 2877
  • 1 $3.1190
  • 10 $2.7956
  • 100 $2.2771
  • 1,000 $2.1348
$2.1348 / $3.1190 Buy Now
DISTI # 70428263
RS Connector, Wt 4.18 g, 34 Contacts, SEK Low-profile Series Min Qty: 100 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 0
  • 100 $4.6100
  • 200 $4.2400
  • 400 $3.6800
$3.6800 / $4.6100 RFQ
DISTI # HRT09185346324
Heilind Electronics SEK-18 SV MA LP STR29 34P PL2 Americas - 0 in Stock
  • 100 $2.7334
  • 200 $2.6452
  • 400 $2.6032
  • 700 $2.4219
  • 3,300 $2.3846
$2.3846 / $2.7334 Buy Now
DISTI # 87763594
Verical Conn Shrouded Header (4 Sides) HDR 34 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2505 Americas - 2877
  • 3 $3.1636
  • 10 $2.8355
  • 100 $2.3096
  • 1,000 $2.1653
$2.1653 / $3.1636 Buy Now
DISTI # 87338634
Verical Conn Shrouded Header (4 Sides) HDR 34 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 18 Package Multiple: 1 Americas - 149
  • 18 $4.0460
  • 100 $3.4300
  • 200 $3.2480
  • 500 $3.0240
$3.0240 / $4.0460 Buy Now
DISTI # 09185346324
TTI Headers & Wire Housings 34P MALE STRT IDC LOW PROFILE HDR RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Bulk Americas - 40
In Stock
  • 2 $3.3100
  • 10 $2.8700
  • 25 $2.8100
  • 100 $2.3900
  • 200 $2.3200
  • 500 $2.2700
  • 1,000 $2.0500
$2.0500 / $3.3100 Buy Now
DISTI # 09185346324
TME Connector: IDC, socket, male, PIN: 34, straight, THT, 1.27mm Min Qty: 1 149
  • 1 $3.7800
  • 10 $3.1300
  • 100 $2.6600
  • 200 $2.5100
  • 500 $2.3400
$2.3400 / $3.7800 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 1000
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # 09185346324
Avnet Abacus IDC MALE CONNECTOR 34P (Alt: 09185346324) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 2 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 09185346324

09185346324 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

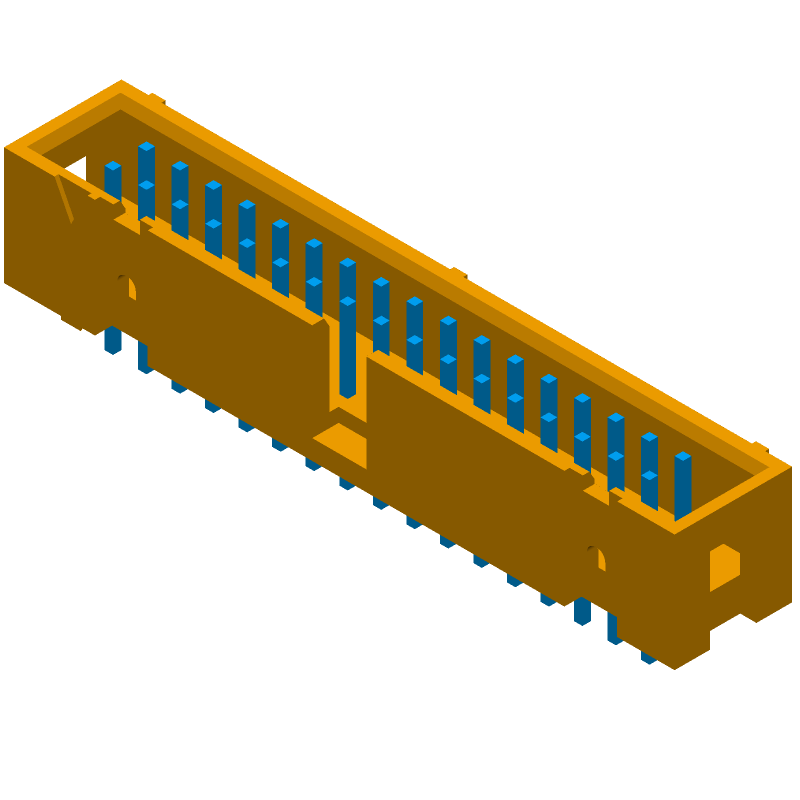

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

09185346324 Part Data Attributes

Parametric Data
09185346324 HARTING Technology Group
Buy Now Datasheet
Compare Parts:
09185346324 HARTING Technology Group Board Euro Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HARTING ELECTRONICS GMBH & CO KG
Reach Compliance Code compliant
Samacsys Manufacturer HARTING
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Body Breadth 0.366 inch
Body Depth 0.372 inch
Body Length 2.008 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination NOT APPLICABLE
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance YES
Durability 250 Cycles
Filter Feature NO
IEC Conformance YES
Insulation Resistance 1000000000 Ω
Insulator Color GRAY
Insulator Material POLYBUTYLENE TEREPHTHALATE
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 2 A
Reference Standard UL
Terminal Length 0.114 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 34
UL Flammability Code 94V-0
