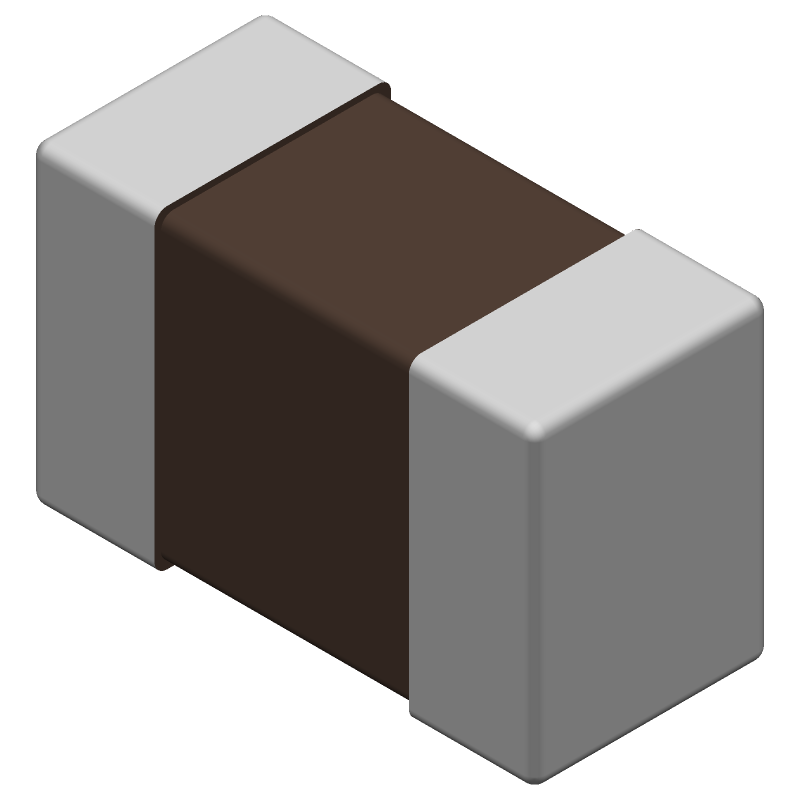

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 08055F102K4T2A by Kyocera AVX Components
Results Overview of 08055F102K4T2A by Kyocera AVX Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
08055F102K4T2A Information
08055F102K4T2A by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 08055F102K4T2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05AC9652
|
Newark | Cap, 1000Pf, 50V, 10%, X8R, 0805, Reel, Capacitance:1000Pf, Voltage Rating:50V, Ceramic Capacitor Case:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X8R, Product Range:Avx 0805 Mlcc, Operating Temperaturerohs Compliant: Yes |Kyocera Avx 08055F102K4T2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel | 4000 |
|
$0.0340 / $0.0410 | Buy Now |
|
DISTI #
95W9357
|
Newark | Smd Multilayer Ceramic Capacitor, Aec-Q200 Mlcc Series, 1000 Pf, 10%, X8R, 50 V Rohs Compliant: Yes |Kyocera Avx 08055F102K4T2A RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1399 |
|
$0.0540 / $0.1240 | Buy Now |
|
DISTI #
60M3616
|
Newark | Mlcc Capacitor, 1000Pf, 50V, X8R, 10%, 0805, Full Reel, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X8R, Product Range:- Rohs Compliant: Yes |Kyocera Avx 08055F102K4T2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0260 / $0.0460 | Buy Now |
|
DISTI #
478-KAM21BR81H102KTCT-ND
|
DigiKey | CAP CER 1000PF 50V X8R 0805 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
27800 In Stock |
|
$0.0338 / $0.2100 | Buy Now |
|
DISTI #
KAM21BR81H102KT
|
Avnet Americas | Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X8R, 0805 [2012 Metric] - Tape and Reel (Alt: KAM21BR81H102KT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0266 / $0.0278 | Buy Now |
|
DISTI #
581-08055F102K4
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT KAM21BR81H102KT NW G LOB PN 50V 1000pF X8 A 581-KAM21BR81H102KT RoHS: Compliant | 23932 |
|
$0.0330 / $0.2100 | Buy Now |
|
DISTI #
08055F102K4T2A
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT KAM21BR81H102KT NW G LOB PN 50V 1000pF X8 A 581-KAM21BR81H102KT RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel |
Americas - 8000 In Stock |
|
$0.0320 / $0.0450 | Buy Now |
|
DISTI #
08055F102K4T2A
|
TME | Capacitor: ceramic, MLCC, 1nF, 50V, X8R, ±10%, SMD, 0805, 180mm Min Qty: 4000 | 0 |
|
$0.0235 | RFQ |
|
DISTI #
KAM21BR81H102KT
|
Avnet Abacus | Multilayer Ceramic Capacitor 1000 pF 50 V 10 X8R 0805 2012 Metric - Tape and Reel (Alt: KAM21BR81H102KT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for 08055F102K4T2A
08055F102K4T2A CAD Models
08055F102K4T2A Part Data Attributes
|
|
08055F102K4T2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
08055F102K4T2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X8R, 0805 (2012 mm), Sn/NiBar, -55º ~ +150ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 0805 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.001 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.94 mm | |
| JESD-609 Code | e3 | |
| Length | 2.01 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PAPER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X8R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
08055F102K4T2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 08055F102K4T2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.
-
Yes, the 08055F102K4T2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The maximum operating voltage for the 08055F102K4T2A capacitor is 50V.
-
Yes, the 08055F102K4T2A capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
Handle the capacitor by the body, not the leads, and store it in a cool, dry place away from direct sunlight and moisture. Avoid bending or flexing the leads, and do not stack or touch components together.
