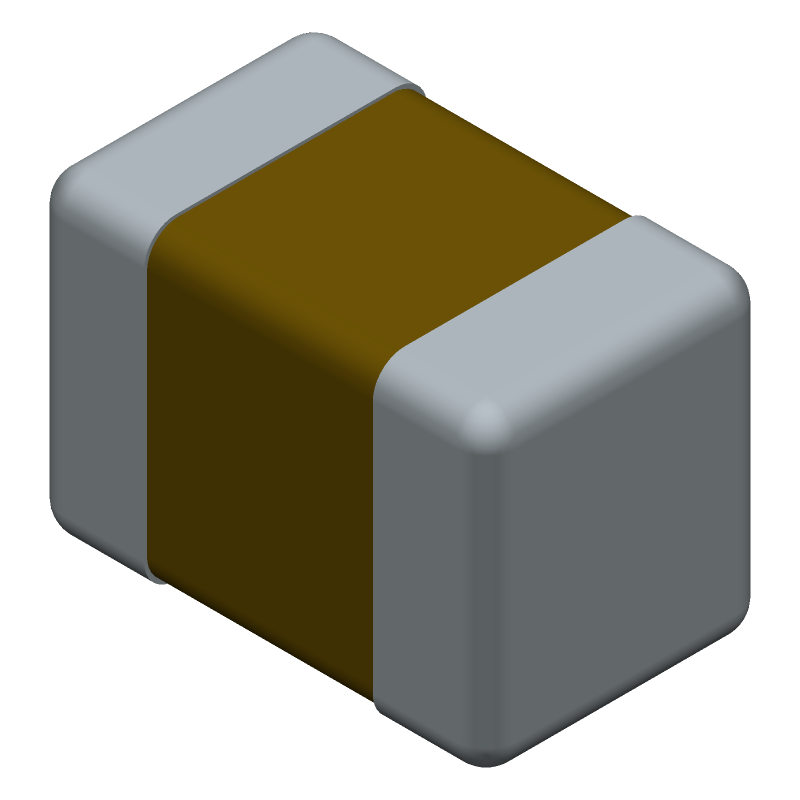

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 08055C154KAT2A by Kyocera AVX Components
Results Overview of 08055C154KAT2A by Kyocera AVX Components
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
08055C154KAT2A Information
08055C154KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 08055C154KAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96Y8518
|
Newark | Cap, Mlcc, X7R, 0.15Uf, 50V, 0805, Capacitance:0.15Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:2.01Mm, Qualification:- Rohs Compliant: Yes |Kyocera Avx 08055C154KAT2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7430 |
|
$0.0120 | Buy Now |
|
DISTI #
81AK0796
|
Newark | Capacitor, 0.15Uf, X7R, 50V, 0805 Rohs Compliant: Yes |Kyocera Avx 08055C154KAT2A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Reel | 4000 |
|
$0.0180 / $0.0290 | Buy Now |
|
DISTI #
96Y8518
|
Avnet Americas | SMD Multilayer Ceramic Capacitor, 0.15 ?F, 50 V, 0805 [2012 Metric], ? 10%, X7R - Product that comes on tape, but is not reeled (Alt: 96Y8518) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 1 Days Container: Ammo Pack | 7430 Partner Stock |
|
$0.1250 / $0.3120 | Buy Now |
|
DISTI #
KGM21ER71H154KU
|
Avnet Americas | SMD Multilayer Ceramic Capacitor, 0.15 ?F, 50 V, 0805 [2012 Metric], ? 10%, X7R - Tape and Reel (Alt: KGM21ER71H154KU) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0131 / $0.0140 | Buy Now |
|
DISTI #
581-08055C154KAT2A
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21ER71H154KU NEW GLOBAL PN 50V 0.15uF A 581-KGM21ER71H154KU RoHS: Compliant | 1757 |
|
$0.0240 / $0.1500 | Buy Now |
|
|
Future Electronics | 0805 150 nF 50 V ±10 % Tolerance X7R Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks Container: Reel | 26000Reel |
|
$0.0132 / $0.0146 | Buy Now |
|
|
Bristol Electronics | 2000 |
|
RFQ | ||
|
|
Quest Components | 1600 |
|
$0.0336 / $0.1120 | Buy Now | |
|
DISTI #
08055C154KAT2A
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21ER71H154KU NEW GLOBAL PN 50V 0.15uF A 581-KGM21ER71H154KU RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 4000 In Stock |
|
$0.0152 / $0.0185 | Buy Now |
|
|
Future Electronics | 0805 150 nF 50 V �10 % Tolerance X7R Surface Mount Multilayer Ceramic Capacitor Min Qty: 2000 Package Multiple: 2000 |
26000 null |
|
$0.0132 / $0.0146 | Buy Now |
Part Details for 08055C154KAT2A
08055C154KAT2A CAD Models
08055C154KAT2A Part Data Attributes
|
|
08055C154KAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
08055C154KAT2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 0.15uF, 50V, ±10%, X7R, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 0805 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 11 Weeks, 1 Day | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.15 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.4 mm | |
| JESD-609 Code | e3 | |
| Length | 2.01 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
Alternate Parts for 08055C154KAT2A
This table gives cross-reference parts and alternative options found for 08055C154KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 08055C154KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 08055C154KAZ2A | Kyocera AVX Components | $0.1510 | Capacitor, Ceramic, Chip, General Purpose, 0.15uF, 50V, ±10%, X7R, 0805 (2012 mm), Flexiterm, -55º ~ +125ºC, 7" Reel | 08055C154KAT2A vs 08055C154KAZ2A |
| LD055C154KAB2A | Kyocera AVX Components | $0.3965 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.15uF, Surface Mount, 0805, CHIP | 08055C154KAT2A vs LD055C154KAB2A |
| LD055C154KAX2A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.15uF, Surface Mount, 0805, CHIP | 08055C154KAT2A vs LD055C154KAX2A |
| VJ0805Y154KXARW1BC | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.15uF, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT | 08055C154KAT2A vs VJ0805Y154KXARW1BC |
08055C154KAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 08055C154KAT2A capacitor is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 08055C154KAT2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The maximum operating voltage for the 08055C154KAT2A capacitor is 50V DC.
-
Yes, the 08055C154KAT2A capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The capacitance of the 08055C154KAT2A capacitor decreases with increasing temperature, with a temperature coefficient of capacitance (TCC) of ±15% from -55°C to 125°C.
