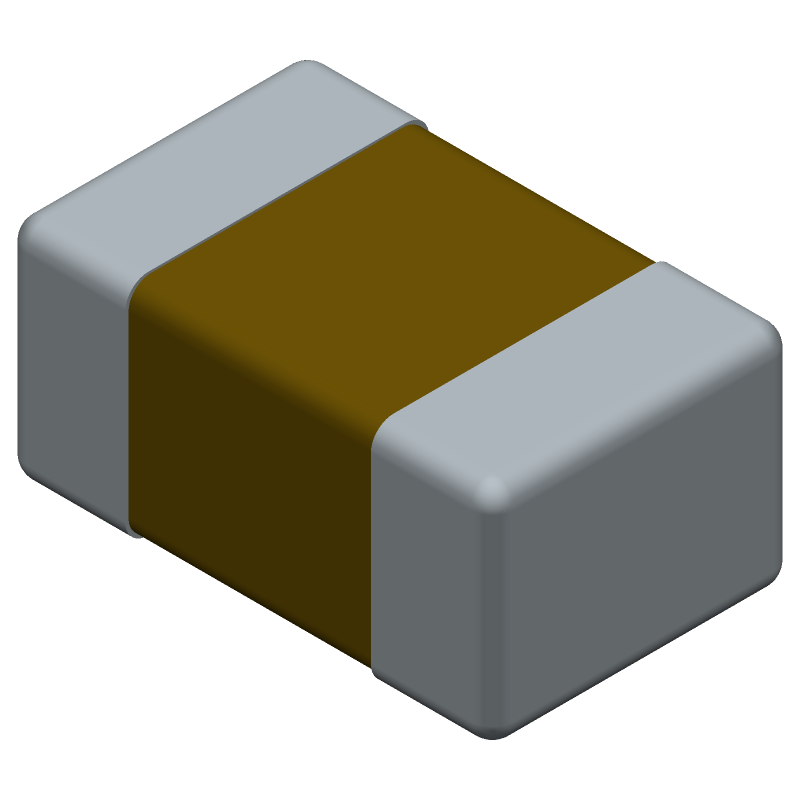

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 08055A470JAT2A by Kyocera AVX Components
Results Overview of 08055A470JAT2A by Kyocera AVX Components
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
08055A470JAT2A Information
08055A470JAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 08055A470JAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60R6312
|
Newark | Ceramic Capacitor 47Pf 50V, C0G, 5%, 0805, Capacitance:47Pf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:-, Product Length:2.01Mm Rohs Compliant: Yes |Kyocera Avx 08055A470JAT2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 11914 |
|
$0.0160 | Buy Now |
|
DISTI #
04X9389
|
Newark | Smd Multilayer Ceramic Capacitor, 47 Pf, 5%, C0G/Np0, 50 V, 0805 [2012 Metric] Rohs Compliant: Yes |Kyocera Avx 08055A470JAT2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0190 / $0.0220 | Buy Now |
|
DISTI #
60R6312
|
Avnet Americas | Multilayer Ceramic Capacitor, 47 pF, 50 V, ? 5% , C0G (NP0) , 0805 [2012 Metric] - Product that comes on tape, but is not reeled (Alt: 60R6312) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 1 Days Container: Ammo Pack | 11914 Partner Stock |
|
$0.0790 / $0.2290 | Buy Now |
|
DISTI #
KGM21BCG1H470JT
|
Avnet Americas | Multilayer Ceramic Capacitor, 47 pF, 50 V, ? 5% , C0G (NP0) , 0805 [2012 Metric] - Tape and Reel (Alt: KGM21BCG1H470JT) RoHS: Compliant Min Qty: 40000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0115 / $0.0118 | Buy Now |
|
DISTI #
581-08055A470J
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21BCG1H470JT NEW GLOBAL PN 50V 47pF C A 581-KGM21BCG1H470JT RoHS: Compliant | 62562 |
|
$0.0150 / $0.1300 | Buy Now |
|
DISTI #
V72:2272_07470035
|
Arrow Electronics | Cap Ceramic 47pF 50V C0G 5% Pad SMD 0805 125°C T/R RoHS: Compliant Min Qty: 8475 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2124 Container: Cut Strips | Americas - 6020 |
|
$0.0118 | Buy Now |
|
DISTI #
70001685
|
RS | Capacitor, Ceramic, Cap 47pF Tol 5%, SMT, Vol-Rtg 50V, C0G, TR Min Qty: 4000 Package Multiple: 1 Container: Bulk | 1700 |
|
$0.0140 / $0.0160 | Buy Now |
|
|
Future Electronics | 0805 47 pF 50V ±5% Tolerance C0G/NP0 Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks Container: Reel | 72000Reel |
|
$0.0158 / $0.0168 | Buy Now |
|
|
Bristol Electronics | Min Qty: 45 | 78969 |
|
$0.0090 / $0.1125 | Buy Now |
|
|
Bristol Electronics | Min Qty: 45 | 3780 |
|
$0.0188 / $0.1125 | Buy Now |
Part Details for 08055A470JAT2A
08055A470JAT2A CAD Models
08055A470JAT2A Part Data Attributes
|
|
08055A470JAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
08055A470JAT2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 0805 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.000047 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.94 mm | |
| JESD-609 Code | e3 | |
| Length | 2.01 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PAPER, 7 INCH | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
Alternate Parts for 08055A470JAT2A
This table gives cross-reference parts and alternative options found for 08055A470JAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 08055A470JAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 08055A470JA14A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, | 08055A470JAT2A vs 08055A470JA14A |
| BC055A470JZJ3SA2 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZJ3SA2 |
| BC055A470JZT9SA0 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZT9SA0 |
| BC055A470JZT6AA3 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZT6AA3 |
| BC055A470JZJ9AA3 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZJ9AA3 |
| GQM2195C1H470JB01D | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT | 08055A470JAT2A vs GQM2195C1H470JB01D |
| BC055A470JZB3SA1 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZB3SA1 |
| LD055A470JAB7A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0805, | 08055A470JAT2A vs LD055A470JAB7A |
| BC055A470JZB1AA1 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZB1AA1 |
| BC055A470JZJ6AA2 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0805, CHIP | 08055A470JAT2A vs BC055A470JZJ6AA2 |
08055A470JAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 08055A470JAT2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.
-
Yes, the 08055A470JAT2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The maximum operating voltage for the 08055A470JAT2A capacitor is 50V DC.
-
Yes, the 08055A470JAT2A capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
Handle the capacitor by the body, not the leads, and store it in a cool, dry place away from direct sunlight and moisture. Avoid bending or flexing the leads, and do not stack components on top of each other.
