Capacitors / Ceramic Capacitors / 08055A152FAT2A
Datasheets
08055A152FAT2A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 1500pF, 50V, ±1%, C0G/NP0, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel

Part Details for 08055A152FAT2A by Kyocera AVX Components

Results Overview of 08055A152FAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

08055A152FAT2A Information

08055A152FAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 08055A152FAT2A

Part # Distributor Description Stock Price Buy
DISTI # 66AH8190
Newark Cap, 1500Pf, 50V, Mlcc, 0805 Rohs Compliant: Yes |Kyocera Avx 08055A152FAT2A RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3610
  • 10 $0.3780
  • 25 $0.3400
  • 50 $0.3020
  • 100 $0.2640
$0.2640 / $0.3780 Buy Now
DISTI # 81H4388
Newark Cap, Mlcc, C0G, 1500Pf, 50V, 0805, Capacitance:1500Pf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 1%, Dielectric Characteristic:C0G/Np0, Product Range:-, Product Length:2.01Mm, Msl:- Rohs Compliant: Yes |Kyocera Avx 08055A152FAT2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.1630
  • 8,000 $0.1400
  • 16,000 $0.1340
  • 24,000 $0.1280
$0.1280 / $0.1630 Buy Now
DISTI # KGM21BCG1H152FT
Avnet Americas SMD Multilayer Ceramic Capacitor, 1500 pF, 50 V, 0805 [2012 Metric], ? 1%, C0G / NP0 - Tape and Reel (Alt: KGM21BCG1H152FT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.1267
  • 8,000 $0.1248
  • 16,000 $0.1229
  • 24,000 $0.1210
  • 32,000 $0.1186
$0.1186 / $0.1267 Buy Now
DISTI # 581-08055A152FAT2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21BCG1H152FT NEW GLOBAL PN 50V 1500pF A 581-KGM21BCG1H152FT RoHS: Compliant 0
  • 1 $0.5600
  • 10 $0.3780
  • 100 $0.2580
  • 500 $0.2110
  • 1,000 $0.1950
  • 4,000 $0.1660
  • 8,000 $0.1600
  • 48,000 $0.1570
$0.1570 / $0.5600 Order Now
Bristol Electronics   2750
RFQ
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.0015 UF, SURFACE MOUNT, 0805 3166
  • 1 $0.2835
  • 266 $0.1512
  • 1,324 $0.1229
$0.1229 / $0.2835 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.0015 UF, SURFACE MOUNT, 0805 2312
  • 1 $0.9450
  • 119 $0.2835
  • 1,412 $0.1890
$0.1890 / $0.9450 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.0015 UF, SURFACE MOUNT, 0805 2200
  • 1 $0.8250
  • 122 $0.4125
  • 486 $0.3300
$0.3300 / $0.8250 Buy Now
DISTI # 08055A152FAT2A
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21BCG1H152FT NEW GLOBAL PN 50V 1500pF A 581-KGM21BCG1H152FT RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel Americas - 0
  • 4,000 $0.1560
  • 8,000 $0.1430
  • 12,000 $0.1400
  • 20,000 $0.1380
$0.1380 / $0.1560 Buy Now
DISTI # 08055A152FAT2A
TME Capacitor: ceramic, MLCC, 1.5nF, 50V, C0G (NP0), ±1%, SMD, 0805 Min Qty: 4000 0
  • 4,000 $0.1370
$0.1370 RFQ
DISTI # SMC-08055A152FAT2A
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 395
RFQ
DISTI # KGM21BCG1H152FT
Avnet Abacus SMD Multilayer Ceramic Capacitor 1500 pF 50 V 0805 2012 Metric 1 C0G NP0 - Tape and Reel (Alt: KGM21BCG1H152FT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 08055A152FAT2A
Avnet Asia SMD Multilayer Ceramic Capacitor, 1500 pF, 50 V, 0805 [2012 Metric], ? 1%, C0G / NP0 (Alt: 08055A152FAT2A) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for 08055A152FAT2A

08055A152FAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

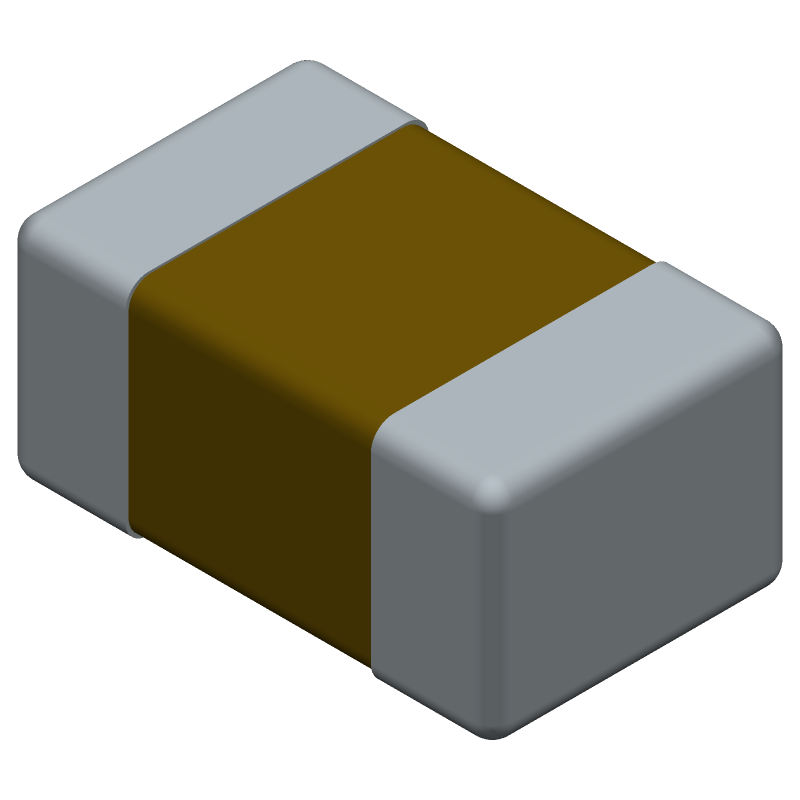

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

08055A152FAT2A Part Data Attributes

Parametric Data
08055A152FAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
08055A152FAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 1500pF, 50V, ±1%, C0G/NP0, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0805
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.0015 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.94 mm
JESD-609 Code e3
Length 2.01 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 1%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 1%
Rated (DC) Voltage (URdc) 50 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for 08055A152FAT2A

This table gives cross-reference parts and alternative options found for 08055A152FAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 08055A152FAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0805C152F5GACAUTO KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.0015uF, 0805, 08055A152FAT2A vs C0805C152F5GACAUTO
BC055A152FZT3AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs BC055A152FZT3AA2
C0805C152F5GAC9239 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.0015uF, 0805, 08055A152FAT2A vs C0805C152F5GAC9239
08055A152FAT7A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs 08055A152FAT7A
BC055A152FZB1SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs BC055A152FZB1SA1
BC055A152FZJ1AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs BC055A152FZJ1AA0
C0805COG152F500NRY Eyang Technology Development Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.0015uF, 0805, 08055A152FAT2A vs C0805COG152F500NRY
BC055A152FZB1SA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs BC055A152FZB1SA3
BC055A152FZT3AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs BC055A152FZT3AA0
C0805T152F5GAC7800 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 0805, CHIP 08055A152FAT2A vs C0805T152F5GAC7800

08055A152FAT2A Related Parts

08055A152FAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 08055A152FAT2A is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, the 08055A152FAT2A is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the 08055A152FAT2A is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The MSL of the 08055A152FAT2A is 1, which means it can be exposed to a maximum of 30°C (86°F) and 60% relative humidity for up to 168 hours.

  • Yes, the 08055A152FAT2A is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of EU directives.
