0603YA220JAT2A by: Kyocera AVX Components

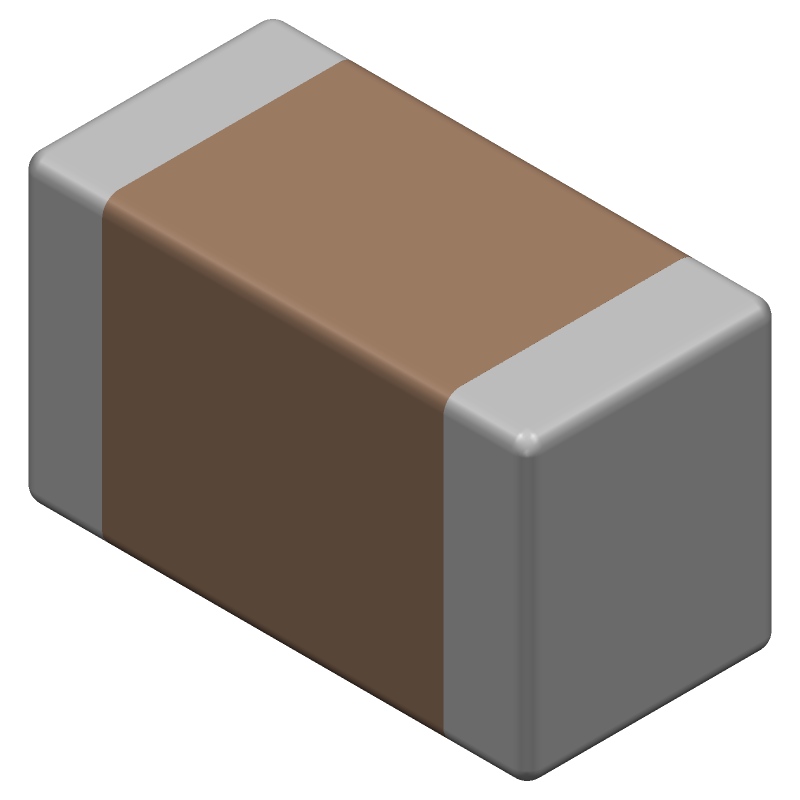

Capacitor, Ceramic, Chip, General Purpose, 22pF, 16V, ±5%, C0G/NP0, 0603 (1608 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel

Part Details for 0603YA220JAT2A by Kyocera AVX Components

Results Overview of 0603YA220JAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

0603YA220JAT2A Information

0603YA220JAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 0603YA220JAT2A

Part # Distributor Description Stock Price Buy
DISTI # 92H1786
Newark Capacitor Ceramic 22Pf 16V, C0G, 5%, 0603, Full Reel, Capacitance:22Pf, Voltage(Dc):16V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:- Rohs Compliant: Yes |Kyocera Avx 0603YA220JAT2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.0350
  • 8,000 $0.0330
  • 12,000 $0.0310
  • 28,000 $0.0300
  • 100,000 $0.0260
$0.0260 / $0.0350 Buy Now
DISTI # KGM15ACG1C220JT
Avnet Americas Multilayer Ceramic Capacitor, 22 pF, 16 V, ? 5%, C0G (NP0), 0603 [1608 Metric] - Tape and Reel (Alt: KGM15ACG1C220JT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0251
  • 8,000 $0.0247
  • 16,000 $0.0243
  • 24,000 $0.0239
  • 32,000 $0.0235
$0.0235 / $0.0251 Buy Now
DISTI # 581-0603YA220JAT2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 16V 22pF C0G 0603 5% RoHS: Compliant 24096
  • 1 $0.1000
  • 10 $0.0230
  • 100 $0.0170
  • 500 $0.0130
  • 1,000 $0.0120
  • 4,000 $0.0100
  • 8,000 $0.0080
  • 48,000 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # 0603YA220JAT2A
IBS Electronics 0603YA220JAT2A by AVX is a 22pF &#xB1, 5% 16V X7R multilayer ceramic capacitor in a 0603 package, ideal for general-purpose applications with a temperature range of -55&#xB0, C to 125&#xB0, C. Min Qty: 4000 Package Multiple: 1 0
  • 4,000 $0.0320
  • 8,000 $0.0315
  • 12,000 $0.0311
  • 16,000 $0.0309
  • 20,000 $0.0302
$0.0302 / $0.0320 Buy Now
DISTI # KGM15ACG1C220JT
Avnet Abacus Multilayer Ceramic Capacitor 22 pF 16 V 5 C0G NP0 0603 1608 Metric - Tape and Reel (Alt: KGM15ACG1C220JT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for 0603YA220JAT2A

0603YA220JAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0603YA220JAT2A Part Data Attributes

Parametric Data
0603YA220JAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
0603YA220JAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 22pF, 16V, ±5%, C0G/NP0, 0603 (1608 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.000022 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.9 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 16 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.81 mm

Alternate Parts for 0603YA220JAT2A

This table gives cross-reference parts and alternative options found for 0603YA220JAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0603YA220JAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0603NPO220JT7AR American Technical Ceramics Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, NP0, -/+30ppm/Cel TC, 0.000022uF, 0603 0603YA220JAT2A vs 0603NPO220JT7AR
0603N220J160PHT-HS Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000022uF, 0603, 0603YA220JAT2A vs 0603N220J160PHT-HS
0603RN220J160PR Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000022uF, 0603, 0603YA220JAT2A vs 0603RN220J160PR
0603RN220J160KT Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000022uF, 0603, 0603YA220JAT2A vs 0603RN220J160KT
MQ03YA220JGB3A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP 0603YA220JAT2A vs MQ03YA220JGB3A
0603N220J160SHT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP 0603YA220JAT2A vs 0603N220J160SHT
BC03YA220JZT1SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP 0603YA220JAT2A vs BC03YA220JZT1SA1
BC03YA220JZJ3SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP 0603YA220JAT2A vs BC03YA220JZJ3SA1
0603A220JJXW SRT Micro Ceramique Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP 0603YA220JAT2A vs 0603A220JJXW
0603NP0220JT7SR American Technical Ceramics Corp Check for Price CAP,CERAMIC,22PF,16VDC,5% -TOL,5% +TOL,NP0 TC CODE,-30,30PPM TC,0603 CASE 0603YA220JAT2A vs 0603NP0220JT7SR

0603YA220JAT2A Related Parts

0603YA220JAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 0603YA220JAT2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.

  • Yes, the 0603YA220JAT2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

  • The maximum operating voltage for the 0603YA220JAT2A capacitor is 16VDC.

  • The 0603YA220JAT2A capacitor is rated for operation up to 125°C, but it's not recommended to use it in environments above 85°C without derating the voltage and current ratings.

  • The 0603YA220JAT2A capacitor has a self-resonant frequency of around 100 MHz, making it suitable for high-frequency applications up to 100 MHz.
