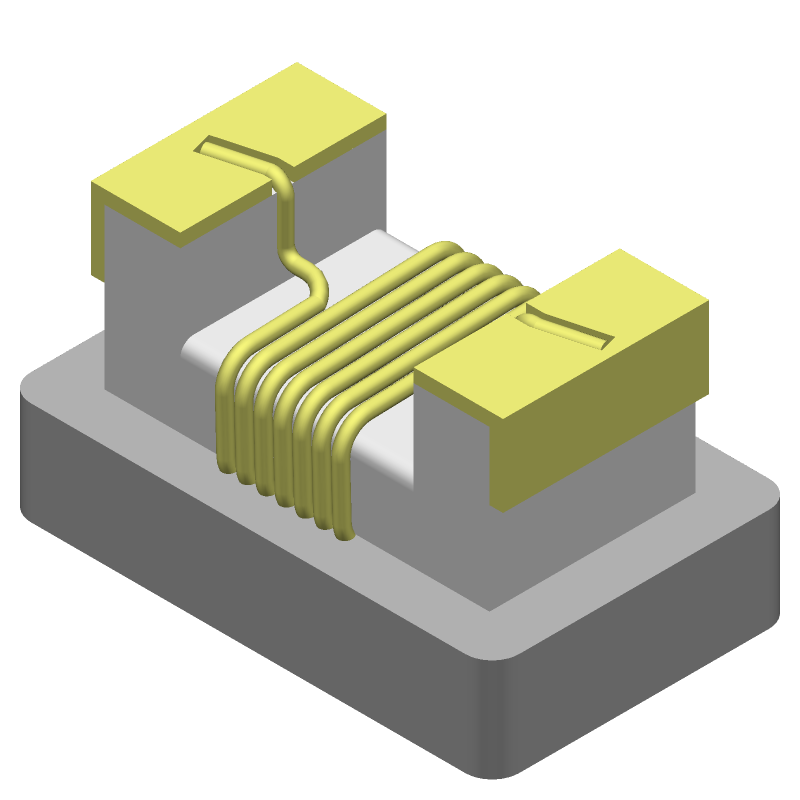

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0603CS-56NXJLW by Coilcraft Inc
Results Overview of 0603CS-56NXJLW by Coilcraft Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Industrial Automation
Financial Technology (Fintech)
0603CS-56NXJLW Information
0603CS-56NXJLW by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 0603CS-56NXJLW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 5858 |
|
RFQ | ||
|
|
Bristol Electronics | 4573 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 1015 |
|
$0.1800 / $0.5625 | Buy Now |
|
|
Quest Components | IND,CERAMIC,56NH,5+% TOL,5-% TOL,0704-CASE | 5493 |
|
$0.1733 / $0.4725 | Buy Now |
|
|
Quest Components | IND,CERAMIC,56NH,5+% TOL,5-% TOL,0704-CASE | 4686 |
|
$0.2756 / $0.7875 | Buy Now |
|
|
Quest Components | IND,CERAMIC,56NH,5+% TOL,5-% TOL,0704-CASE | 1512 |
|
$0.3150 / $0.7875 | Buy Now |
|
|
Quest Components | IND,CERAMIC,56NH,5+% TOL,5-% TOL,0704-CASE | 812 |
|
$0.2250 / $0.7500 | Buy Now |
|
|
Quest Components | IND,CERAMIC,56NH,5+% TOL,5-% TOL,0704-CASE | 412 |
|
$0.6300 / $1.5750 | Buy Now |
|
|
Coilcraft Direct | RF inductor, ceramic core, 5% tol, SMT, RoHS RoHS: Compliant pbFree: No Min Qty: 1 | 1261 |
|
$0.2100 / $0.9200 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 1964 |
|
RFQ |
Part Details for 0603CS-56NXJLW
0603CS-56NXJLW CAD Models
0603CS-56NXJLW Part Data Attributes
|
|
0603CS-56NXJLW
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
0603CS-56NXJLW
Coilcraft Inc
General Purpose Inductor, 0.056uH, 5%, 1 Element, Ceramic-Core, SMD, 0704, CHIP, 0704, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 0603 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 0.31 Ω | |
| Inductance-Nom (L) | 0.056 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.02 mm | |
| Package Length | 1.8 mm | |
| Package Style | SMT | |
| Package Width | 1.12 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Quality Factor-Min (at L-nom) | 38 | |
| Rated Current-Max | 0.6 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 1900 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Finish | SILVER PALLADIUM PLATINUM | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 200 MHz | |
| Tolerance | 5% |
0603CS-56NXJLW Frequently Asked Questions (FAQ)
-
Coilcraft recommends a land pattern with a pad size of 0.75 mm x 0.75 mm and a spacing of 0.5 mm between pads. The recommended land pattern is available on Coilcraft's website.
-
The 0603CS-56NXJLW is rated for operation up to 125°C, but derating is required above 85°C. Consult Coilcraft's application notes for guidance on high-temperature operation.
-
Handle the component by the body, not the leads. Avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to minimize mechanical stress.
-
Yes, the 0603CS-56NXJLW is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. Consult Coilcraft's application notes for guidance on lead-free soldering.
-
The 0603CS-56NXJLW has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.
