Capacitors / Ceramic Capacitors / 0603B103K500NT
Datasheets
0603B103K500NT by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP

Part Details for 0603B103K500NT by Fenghua (HK) Electronics Ltd

Results Overview of 0603B103K500NT by Fenghua (HK) Electronics Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

0603B103K500NT Information

0603B103K500NT by Fenghua (HK) Electronics Ltd is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 0603B103K500NT

Part # Distributor Description Stock Price Buy
DISTI # SMC-0603B103K500NT
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 7424
RFQ
Win Source Electronics Cap SMT Cer .01UF 50V 5% 0603 4K/TR 990000
  • 22,730 $0.0025
  • 52,635 $0.0022
  • 83,335 $0.0021
  • 117,650 $0.0020
  • 147,060 $0.0020
  • 200,000 $0.0018
$0.0018 / $0.0025 Buy Now

Part Details for 0603B103K500NT

0603B103K500NT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

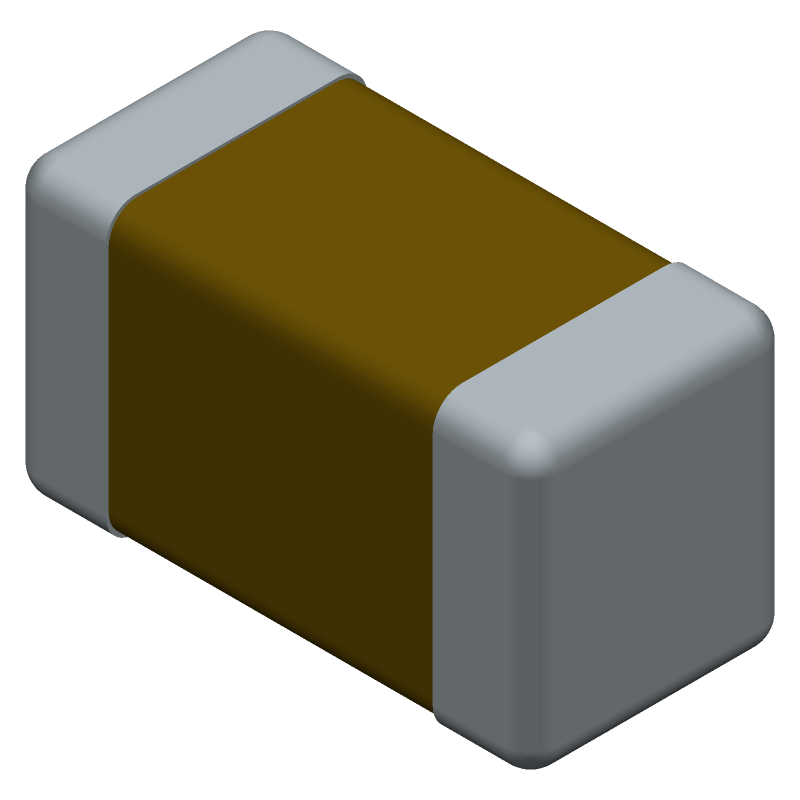

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0603B103K500NT Part Data Attributes

Parametric Data
0603B103K500NT Fenghua (HK) Electronics Ltd
Buy Now Datasheet
Compare Parts:
0603B103K500NT Fenghua (HK) Electronics Ltd Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer FENGHUA ADVANCED TECHNOLOGY
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Fenghua Advanced Technology (Holding) CO. , LTD
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TAPE
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for 0603B103K500NT

This table gives cross-reference parts and alternative options found for 0603B103K500NT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0603B103K500NT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CM105X7R103K50KH KYOCERA Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs CM105X7R103K50KH
C0603S103K5RAL7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs C0603S103K5RAL7411
C0603C103K5RAL7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, 0603B103K500NT vs C0603C103K5RAL7411
0603B103K500PT PILKOR Electronics Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs 0603B103K500PT
C0603T103K5RALTM KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP 0603B103K500NT vs C0603T103K5RALTM
CL10B103KB8ANND Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.01uF, 0603 0603B103K500NT vs CL10B103KB8ANND
MCJCU168BB7103KTPA1J TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP 0603B103K500NT vs MCJCU168BB7103KTPA1J
CL10B103KB8GNNE Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs CL10B103KB8GNNE
0603B103K500NB Hitano Enterprise Corp Check for Price Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs 0603B103K500NB
0603J0500103KXC Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, 0603B103K500NT vs 0603J0500103KXC
Part Number Manufacturer Composite Price Description Compare
MCH185C103KK ROHM Semiconductor Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.01uF, SURFACE MOUNT, 0603, CHIP 0603B103K500NT vs MCH185C103KK

0603B103K500NT Related Parts

0603B103K500NT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the 0603B103K500NT capacitor is a peak temperature of 260°C with a dwell time of 10-30 seconds. However, it's always best to consult the manufacturer's soldering guidelines or contact their technical support for specific recommendations.

  • The 0603B103K500NT capacitor has a self-resonant frequency of around 10-15 MHz, making it suitable for general-purpose applications up to 10 MHz. However, for high-frequency applications above 10 MHz, a more specialized capacitor with a higher self-resonant frequency may be required.

  • The 0603B103K500NT capacitor has a moisture sensitivity level (MSL) of 2, which means it can withstand a maximum of 30°C/60% RH for 40 hours before soldering. This is a relatively low MSL, making it suitable for most standard soldering processes.

  • The 0603B103K500NT capacitor has a maximum operating temperature of 125°C, making it suitable for most general-purpose applications. However, if your application requires operation above 125°C, you may need to consider a more specialized high-temperature capacitor.

  • The equivalent series resistance (ESR) of the 0603B103K500NT capacitor is not explicitly stated in the datasheet. However, based on similar capacitors from Fenghua, the ESR is typically around 10-20 ohms at 100 kHz. For more accurate information, contact the manufacturer or consult their application notes.
