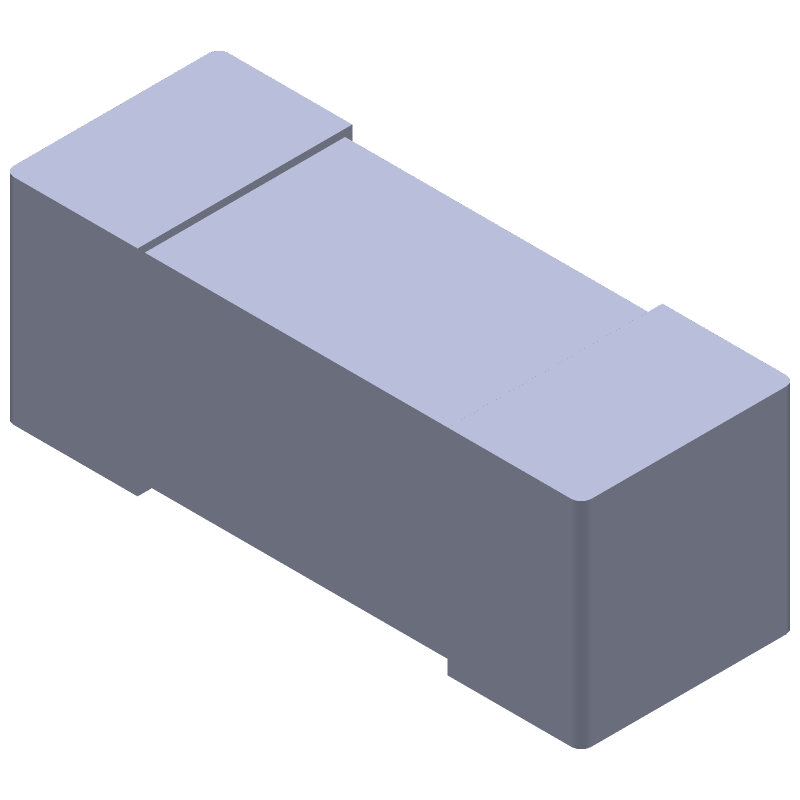

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0465005.DR by Littelfuse Inc
Results Overview of 0465005.DR by Littelfuse Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
0465005.DR Information
0465005.DR by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 0465005.DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12J3716
|
Newark | Surface Mount Fuse, Full Reel, Fuse Current:5A, Blow Characteristic:Time Delay, Voltage Rating Vac:250Vac, Voltage Rating Vdc:-, Fuse Case Style:4818 [1245 Metric], Product Range:Nano2 465 Series, Breaking Capacity Current Ac:100A Rohs Compliant: Yes |Littelfuse 0465005.DR RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.8190 / $1.0400 | Buy Now |
|
DISTI #
27AM6701
|
Newark | Smd Fuse, Time Delay, 5A, 250Vac, Fuse Current:5A, Blow Characteristic:Time Delay, Voltage Rating Vac:250V, Voltage Rating Vdc:-, Fuse Case Style:4818 [1245 Metric], Product Range:Nano2 465 Series, Breaking Capacity Current Ac:100A Rohs Compliant: Yes |Littelfuse 0465005.DR RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.1200 | Buy Now |
|
DISTI #
F5577CT-ND
|
DigiKey | FUSE BOARD MOUNT 5A 250VAC 2SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
315 In Stock |
|
$0.7997 / $1.9300 | Buy Now |
|
DISTI #
576-0465005.DR
|
Mouser Electronics | Surface Mount Fuses 250VAC 5A .013ohms 465 NANO2 RoHS: Compliant | 3000 |
|
$0.8220 / $1.9300 | Buy Now |
|
DISTI #
75570664
|
RS | FUSE 250V TL NANO2 UMF RoHS 5A Min Qty: 1500 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$1.2100 / $1.3100 | RFQ |
|
DISTI #
87351700
|
Verical | Fuse Chip Slow Blow Acting 5A 250V SMD Solder Pad 12.1 X 4.5 X 4.5mm Ceramic T/R PSE Min Qty: 44 Package Multiple: 1 | Americas - 567 |
|
$1.6240 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 769 |
|
$0.6300 / $1.8000 | Buy Now |
|
|
Bristol Electronics | 534 |
|
RFQ | ||
|
|
Quest Components | 615 |
|
$0.7800 / $2.4000 | Buy Now | |
|
|
Quest Components | 427 |
|
$1.3320 / $2.8800 | Buy Now |
Part Details for 0465005.DR
0465005.DR CAD Models
0465005.DR Part Data Attributes
|
|
0465005.DR
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
0465005.DR
Littelfuse Inc
Electric Fuse, Time Lag Blow, 5A, 250VAC, 100A (IR), Surface Mount, NANO, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Blow Characteristic | TIME LAG | |
| Body Breadth | 4.5 mm | |
| Body Height | 4.5 mm | |
| Body Length or Diameter | 12.1 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | NANO2 | |
| JESD-609 Code | e4 | |
| Joule Integral-Nom | 90 J | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | TR | |
| Rated Breaking Capacity | 100 A | |
| Rated Current | 5 A | |
| Rated Voltage(AC) | 250 V | |
| Reference Standard | CE; CUL; IEC16127-4; PSE; UL; UKCA | |
| Surface Mount | YES | |
| Terminal Finish | SILVER | |
| Terminal Shape | WRAPAROUND | |
| Trip Time or Delay | 0.01 s |
Alternate Parts for 0465005.DR
This table gives cross-reference parts and alternative options found for 0465005.DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0465005.DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 465005 | Littelfuse Inc | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 5A, 250VAC, 100A (IR), SURFACE MOUNT, ROHS COMPLIANT | 0465005.DR vs 465005 |
| 0465005. | Littelfuse Inc | Check for Price | Electric Fuse, Time Lag Blow, 5A, 250VAC, 100A (IR), Surface Mount, ROHS COMPLIANT | 0465005.DR vs 0465005. |
| MRT4-AMMO | Bel Fuse | Check for Price | Electric Fuse, Time Lag Blow, 4A, 250VAC, 50A (IR), Through Hole, MICRO, | 0465005.DR vs MRT4-AMMO |
| MRT4-BULK | Bel Fuse | Check for Price | Electric Fuse, Time Lag Blow, 4A, 250VAC, 50A (IR), Through Hole, | 0465005.DR vs MRT4-BULK |
0465005.DR Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 0465005.DR is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 0465005.DR is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum surge current rating for the 0465005.DR is 100A for a duration of 8.3ms.
-
Yes, the 0465005.DR is designed to operate in high-temperature applications up to 150°C, making it suitable for use in automotive and industrial applications.
-
Yes, the 0465005.DR is certified to the AEC-Q200 standard, which is a set of standards for automotive-grade components.
