Connectors / Headers and Edge Type Connectors / 046288060000846+
Datasheets
046288060000846+ by:

Card Edge Connector, 60 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

Part Details for 046288060000846+ by Kyocera AVX Components

Results Overview of 046288060000846+ by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

046288060000846+ Information

046288060000846+ by Kyocera AVX Components is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 046288060000846+

Part # Distributor Description Stock Price Buy
DISTI # 11R8287
Newark Ffc/Fpc Connector, Receptacle 60Pos 1Row, Pitch Spacing:0.5Mm, No. Of Contacts:60Contacts, Gender:Receptacle, Product Range:6288 Series, Contact Termination Type:Surface Mount, Contact Position:Bottom, No. Of Rows:1 Row Rohs Compliant: Yes |Kyocera Avx 046288060000846+ RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $2.0800
$2.0800 Buy Now
DISTI # 26P2733
Newark Fpc 0.5 Mm/Tape/Reel Rohs Compliant: Yes |Kyocera Avx 046288060000846+ RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $1.2500
  • 6,000 $1.2200
  • 10,000 $1.2000
  • 50,000 $1.1700
$1.1700 / $1.2500 Buy Now
DISTI # 478-046288060000846+CT-ND
DigiKey CONN FFC BOTTOM 60POS 0.5MM R/A Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 6552
In Stock
  • 1 $2.5400
  • 10 $2.1550
  • 25 $2.0200
  • 50 $1.9234
  • 100 $1.8314
  • 250 $1.7167
  • 500 $1.6347
  • 1,000 $1.6004
  • 2,000 $1.3075
$1.3075 / $2.5400 Buy Now
DISTI # 046288060000846+
Avnet Americas - Tape and Reel (Alt: 046288060000846+) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 4,000 $1.0455
  • 8,000 $1.0325
  • 12,000 $1.0152
  • 20,000 $1.0022
  • 40,000 $0.9892
$0.9892 / $1.0455 Buy Now
DISTI # 581-046288060000846+
Mouser Electronics FFC & FPC Connectors 60P ZIF R/A SMT ON E TOUCH FLIP LOCK RoHS: Compliant 4328
  • 1 $2.3400
  • 10 $2.0500
  • 25 $1.9600
  • 50 $1.9100
  • 100 $1.8300
  • 250 $1.6500
  • 500 $1.5200
  • 1,000 $1.3100
  • 2,000 $1.2300
$1.2300 / $2.3400 Buy Now
DISTI # 70107535
RS Rectangular Conn, FFC ZIF, 60 Pos., Right-Angle, SMT, Flip-Lock, 6288 Series Min Qty: 2000 Package Multiple: 1 Container: Bulk 0
  • 2,000 $2.3300
  • 10,000 $2.1400
  • 20,000 $1.8600
  • 40,000 $1.6300
  • 100,000 $1.4000
$1.4000 / $2.3300 RFQ
DISTI # 046288060000846+
TTI FFC & FPC Connectors 60P ZIF R/A SMT ON E TOUCH FLIP LOCK RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 4000
In Stock
Buy Now
DISTI # 046288060000846+
Avnet Abacus (Alt: 046288060000846+) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 046288060000846+

046288060000846+ CAD Models

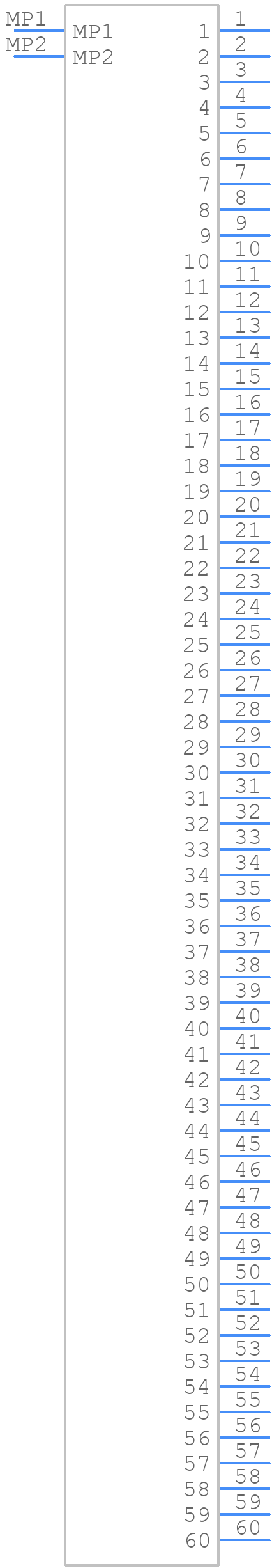

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

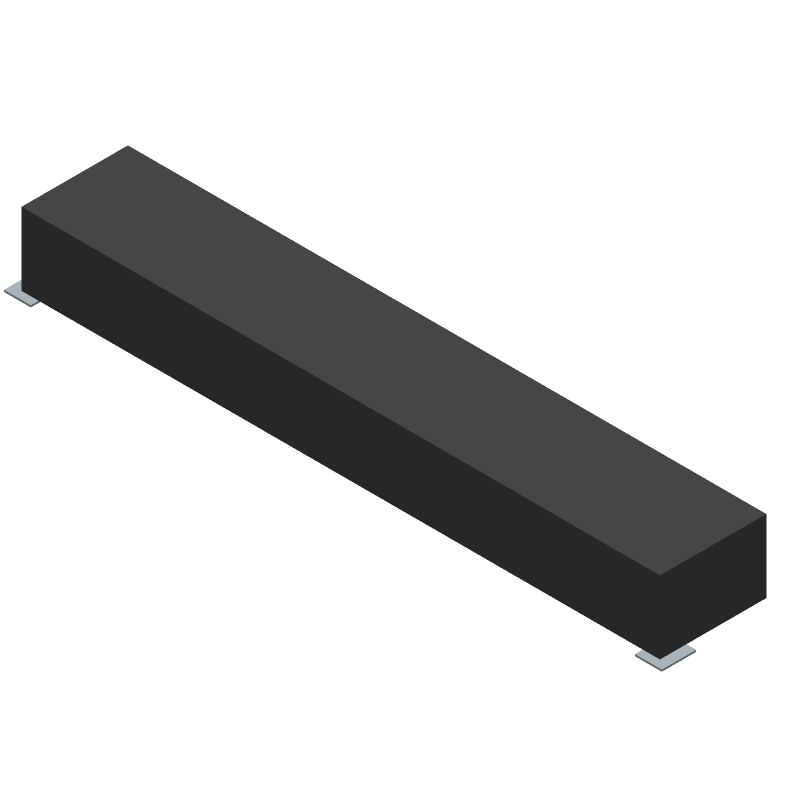

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

046288060000846+ Part Data Attributes

Parametric Data
046288060000846+ Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
046288060000846+ Kyocera AVX Components Card Edge Connector, 60 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Transferred
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 18 Weeks
Samacsys Manufacturer Kyocera AVX
Body Breadth 0.079 inch
Body Depth 0.224 inch
Body Length 1.346 inch
Connector Type FFC/FPC CONNECTOR
Contact Finish Mating GOLD
Contact Finish Termination GOLD
Contact Gender FEMALE
Contact Material NOT SPECIFIED
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.020 inch
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 1
Option GENERAL PURPOSE
Terminal Pitch 0.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 60

Alternate Parts for 046288060000846+

This table gives cross-reference parts and alternative options found for 046288060000846+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 046288060000846+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
046288060000846+ KYOCERA Corporation Check for Price Card Edge Connector, 60 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT 046288060000846+ vs 046288060000846+
046288060000800+ Kyocera AVX Components Check for Price Card Edge Connector, 60 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT 046288060000846+ vs 046288060000800+
046288060000846+ KYOCERA Crystal Device Corporation Check for Price CONNECTOR, 60 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT 046288060000846+ vs 046288060000846+

046288060000846+ Related Parts

046288060000846+ Frequently Asked Questions (FAQ)

  • The recommended land pattern for the 046288060000846 component can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.

  • To prevent damage, it's recommended to handle the component by the edges, avoiding touching the pads or the component body. It's also essential to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.

  • The maximum storage temperature for the 046288060000846 component is 40°C (104°F) according to the datasheet. It's essential to store the component in a cool, dry place to prevent degradation or damage.

  • The 046288060000846 component is designed to withstand moderate vibration levels. However, if you plan to use it in a high-vibration environment, it's recommended to perform additional testing and validation to ensure the component's reliability and performance.

  • The lead time for the 046288060000846 component varies depending on the supplier, quantity, and availability. It's recommended to check with authorized distributors or the manufacturer's website for the most up-to-date lead time information.
