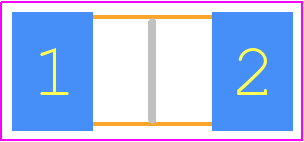

Footprint
-

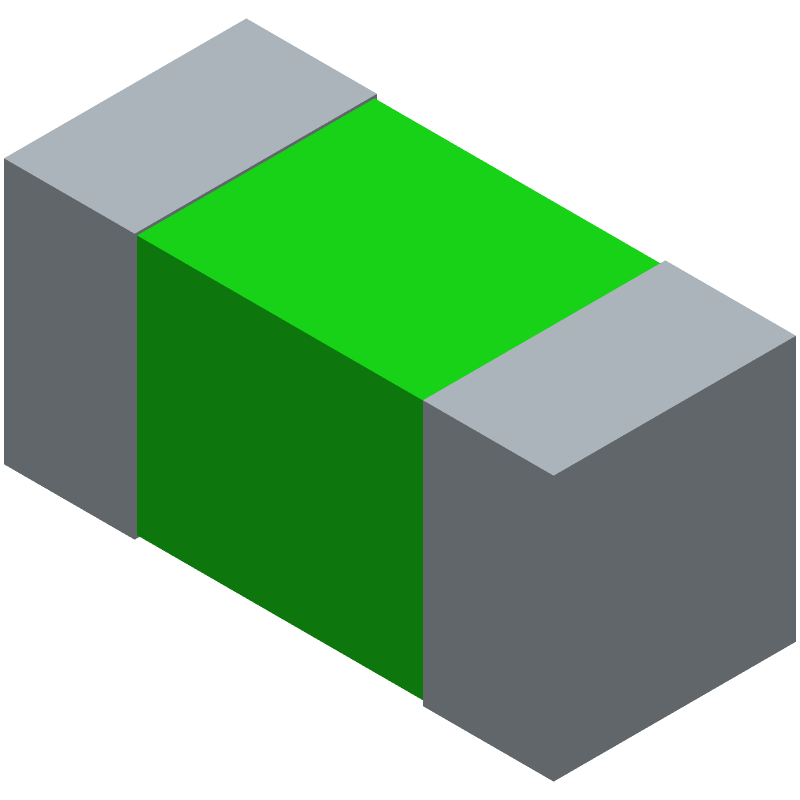

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0451015.NRL by Littelfuse Inc
Results Overview of 0451015.NRL by Littelfuse Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
0451015.NRL Information
0451015.NRL by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 0451015.NRL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01P9312
|
Newark | Fuse 65V V/Fa Nano2 W/Au Caps Rohs 15A/ Tr Rohs Compliant: Yes |Littelfuse 0451015.NRL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9160 / $0.9880 | Buy Now |
|
DISTI #
F11911CT-ND
|
DigiKey | FUSE BRD MNT 15A 65VAC 65VDC SMD Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
794 In Stock |
|
$0.8944 / $2.1400 | Buy Now |
|
DISTI #
576-0451015.NRL
|
Mouser Electronics | Surface Mount Fuses 65VAC 15A .0037ohms 451 NANO2 RoHS: Compliant | 228 |
|
$0.8950 / $2.1400 | Buy Now |
|
DISTI #
75570459
|
RS | FUSE 65V V/FA NANO2 W/Au CAPS RoHS 15A Min Qty: 5000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$1.3800 | RFQ |
|
DISTI #
58344919
|
Verical | Fuse Chip Very Fast Acting 15A 65V SMD Solder Pad 2410 Ceramic T/R CE/CSA/PSE/UL Min Qty: 41 Package Multiple: 1 | Americas - 2846 |
|
$0.7500 / $1.2500 | Buy Now |
|
DISTI #
000000000007263817
|
Sager | FUSE 65V V/FA NANO2 W/AU CAPS ROHS 15A Min Qty: 5000 | 0 |
|
Buy Now | |
|
DISTI #
0451015.NRL
|
Chip One Stop | Fuse Chip Very Fast Acting 15A 65V SMD Solder Pad 2410 Ceramic T/R RoHS: Compliant pbFree: No Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2846 |
|
$0.7360 / $1.5800 | Buy Now |
Part Details for 0451015.NRL
0451015.NRL CAD Models
0451015.NRL Part Data Attributes
|
|
0451015.NRL
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
0451015.NRL
Littelfuse Inc
Electric Fuse, Very Fast Blow, 15A, 65VAC, 65VDC, 50A (IR), Surface Mount, NANO, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | RATED BREAKING CAPACITY AT 65 VDC: 150 A | |
| Blow Characteristic | VERY FAST | |
| Body Breadth | 2.69 mm | |
| Body Height | 2.69 mm | |
| Body Length or Diameter | 6.1 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | NANO2 | |
| JESD-609 Code | e4 | |
| Joule Integral-Nom | 97 J | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | TR | |
| Rated Breaking Capacity | 100 A | |
| Rated Current | 15 A | |
| Rated Voltage(AC) | 65 V | |
| Rated Voltage(DC) | 65 V | |
| Reference Standard | CSA; CUL; UKCA; UL | |
| Surface Mount | YES | |
| Terminal Finish | GOLD | |
| Terminal Shape | WRAPAROUND | |
| Trip Time or Delay | 20 s |
Alternate Parts for 0451015.NRL
This table gives cross-reference parts and alternative options found for 0451015.NRL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0451015.NRL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 0451015.NRSN | Littelfuse Inc | Check for Price | Electric Fuse, Very Fast Blow, 15A, 50A (IR), NANO, HALOGEN FREE AND ROHS COMPLIANT | 0451015.NRL vs 0451015.NRSN |
| 0451015.NR | Littelfuse Inc | Check for Price | Electric Fuse, Very Fast Blow, 15A, 65VAC, 65VDC, 50A (IR), Surface Mount, NANO, | 0451015.NRL vs 0451015.NR |
| 0451015. | Littelfuse Inc | Check for Price | Electric Fuse, Very Fast Blow, 15A, 65VAC, 65VDC, 100A (IR), Surface Mount, LEAD FREE | 0451015.NRL vs 0451015. |
0451015.NRL Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 0451015.NRL is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 0451015.NRL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum voltage rating for the 0451015.NRL is 15V, but it's recommended to operate it at a maximum of 12V for optimal performance and reliability.
-
The 0451015.NRL is rated for operation up to 125°C, but it's not recommended for use in high-temperature applications above 100°C without proper derating and thermal management.
-
Yes, the 0451015.NRL meets the requirements of the AEC-Q200 standard for automotive applications, but it's recommended to consult with Littelfuse Inc for specific application guidance.
