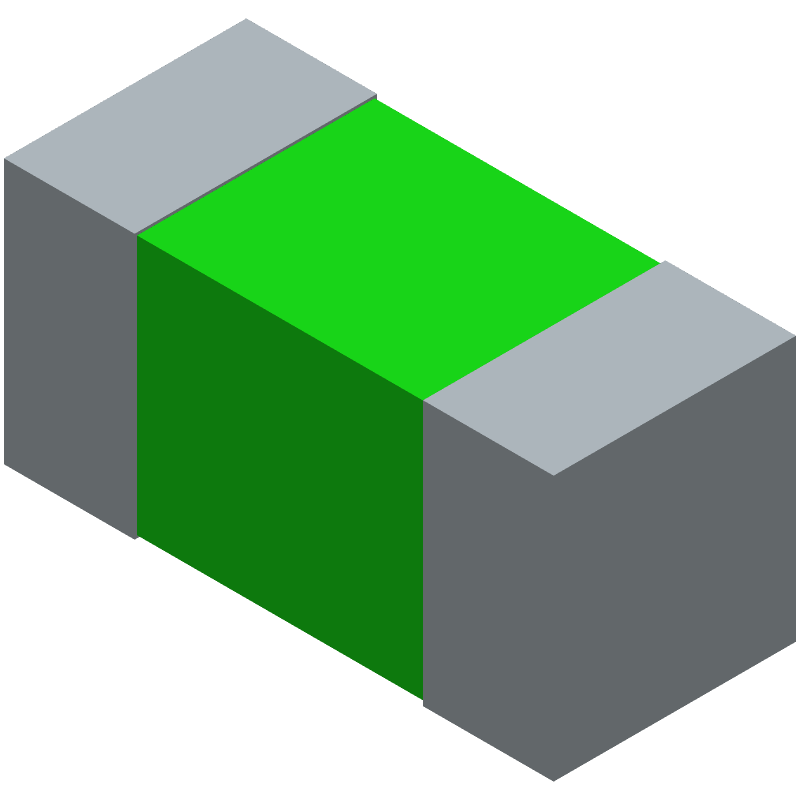

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0448005. by Littelfuse Inc
Results Overview of 0448005. by Littelfuse Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
0448005. Information
0448005. by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Part Details for 0448005.
0448005. CAD Models
0448005. Part Data Attributes
|
|
0448005.
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
0448005.
Littelfuse Inc
Electric Fuse, Very Fast Blow, 5A, 125VAC, 125VDC, 50A (IR), Surface Mount, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | RATED BREAKING CAPACITY AT 125 VDC: 50 A | |
| Blow Characteristic | VERY FAST | |
| Body Breadth | 2.69 mm | |
| Body Height | 2.69 mm | |
| Body Length or Diameter | 6.1 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Joule Integral-Nom | 4 J | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Rated Breaking Capacity | 50 A | |
| Rated Current | 5 A | |
| Rated Voltage(AC) | 125 V | |
| Rated Voltage(DC) | 125 V | |
| Reference Standard | CSA; METI; PSE; UL | |
| Surface Mount | YES | |
| Terminal Shape | END CAP |
Alternate Parts for 0448005.
This table gives cross-reference parts and alternative options found for 0448005.. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0448005., but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| R451005.NR | Littelfuse Inc | Check for Price | Electric Fuse, CHIP | 0448005. vs R451005.NR |
| R451005.MR | Littelfuse Inc | Check for Price | Electric Fuse, CHIP | 0448005. vs R451005.MR |
