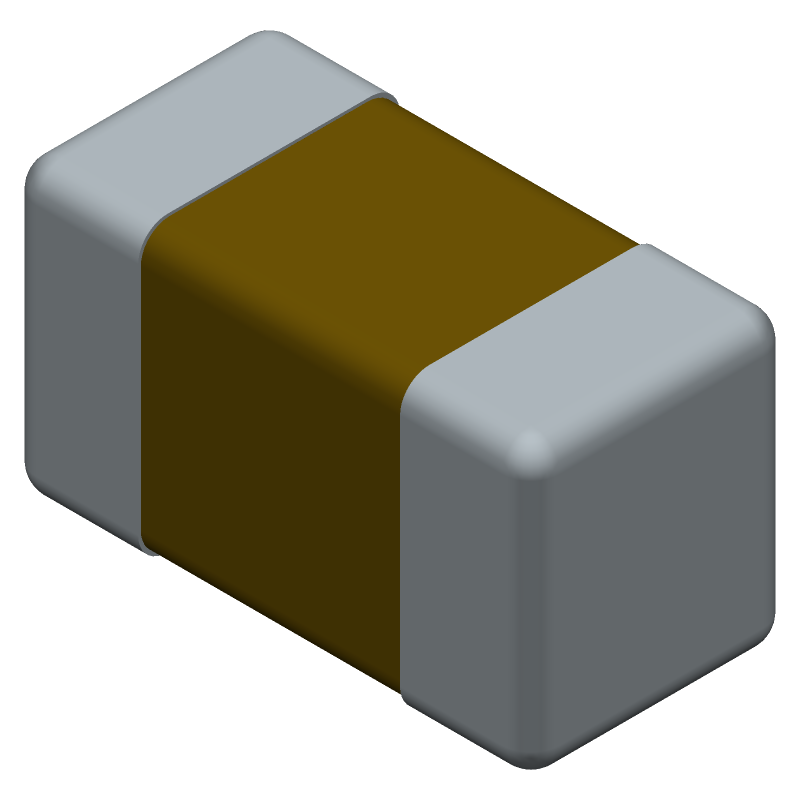

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0402ZD105KAT2A by Kyocera AVX Components
Results Overview of 0402ZD105KAT2A by Kyocera AVX Components
- Distributor Offerings: (32 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
0402ZD105KAT2A Information
0402ZD105KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 0402ZD105KAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04X9267
|
Newark | Smd Multilayer Ceramic Capacitor, 1 F, 10%, X5R, 10 V, 0402 [1005 Metric] Rohs Compliant: Yes |Kyocera Avx 0402ZD105KAT2A RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel | 50000 |
|
$0.0180 / $0.0190 | Buy Now |
|
DISTI #
06M4041
|
Newark | Ceramic Capacitor, 1Uf, 10V, X5R, 10%, 0402, Capacitance:1Μf, Voltage(Dc):10V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:-, Product Length:1.02Mm Rohs Compliant: Yes |Kyocera Avx 0402ZD105KAT2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6135 |
|
$0.0290 | Buy Now |
|
DISTI #
50R8269
|
Newark | Smd Multilayer Ceramic Capacitor, 1 F, 10%, X5R, 10 V, 0402 [1005 Metric] Rohs Compliant: Yes |Kyocera Avx 0402ZD105KAT2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1006 |
|
$0.0290 / $0.1200 | Buy Now |
|
DISTI #
478-KGM05AR51A105KHCT-ND
|
DigiKey | CAP CER 1UF 10V X5R 0402 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1177263 In Stock |
|
$0.0120 / $0.0800 | Buy Now |
|
DISTI #
KGM05AR51A105KH
|
Avnet Americas | Multilayer Ceramic Capacitor, 1 uF, 10 V, ? 10%, X5R, 0402 [1005 Metric] - Tape and Reel (Alt: KGM05AR51A105KH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 10000200000 Factory Stock |
|
$0.0104 / $0.0106 | Buy Now |
|
DISTI #
KGM05AR51A105KH
|
Avnet Americas | Multilayer Ceramic Capacitor, 1 uF, 10 V, ? 10%, X5R, 0402 [1005 Metric] - Tape and Reel (Alt: KGM05AR51A105KH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 111 Weeks, 0 Days Container: Reel | 200000 Factory Stock |
|
$0.0030 / $0.0032 | Buy Now |
|
DISTI #
581-0402ZD105K
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05AR51A105KH NEW GLOBAL PN 10V 1uF X5 A 581-KGM05AR51A105KH RoHS: Compliant | 351581 |
|
$0.0110 / $0.1000 | Buy Now |
|
DISTI #
V36:1790_07469308
|
Arrow Electronics | Cap Ceramic 1uF 10V X5R 10% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Date Code: 2215 | Americas - 110000 |
|
$0.0106 / $0.0120 | Buy Now |
|
DISTI #
V72:2272_07469308
|
Arrow Electronics | Cap Ceramic 1uF 10V X5R 10% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 1597 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2210 Container: Cut Strips | Americas - 1597 |
|
$0.0121 | Buy Now |
|
DISTI #
70001607
|
RS | 0402 1uF Ceramic Multilayer Capacitor, 10 V dc, +85degC, X5R Dielectric, +/-10% Min Qty: 10000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0960 | RFQ |
Part Details for 0402ZD105KAT2A
0402ZD105KAT2A CAD Models
0402ZD105KAT2A Part Data Attributes
|
|
0402ZD105KAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
0402ZD105KAT2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 1uF, 10V, ±10%, X5R, 0402 (1005 mm), Sn/NiBar, -55º ~ +85ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 0402 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.56 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PAPER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 10 V | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X5R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.5 mm |
Alternate Parts for 0402ZD105KAT2A
This table gives cross-reference parts and alternative options found for 0402ZD105KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0402ZD105KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 0402W105K100YW | Knowles Capacitors | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 1uF, 0402, | 0402ZD105KAT2A vs 0402W105K100YW |
| AU02ZD105KA74A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 1uF, 0402, | 0402ZD105KAT2A vs AU02ZD105KA74A |
| CE0402-105-K010XBW | RCD Components Inc | Check for Price | Ceramic Capacitor, Ceramic, | 0402ZD105KAT2A vs CE0402-105-K010XBW |
| GMC04X5R105K10NT | Cal-Chip Electronics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT | 0402ZD105KAT2A vs GMC04X5R105K10NT |
| CL05A105KP5NNNL | Samsung Electro-Mechanics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 1uF, 0402, | 0402ZD105KAT2A vs CL05A105KP5NNNL |
| VJ0402G105KXQCW1BC | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 1uF, 0402, | 0402ZD105KAT2A vs VJ0402G105KXQCW1BC |
| LD02ZD105KAB4A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 1uF, Surface Mount, 0402, CHIP | 0402ZD105KAT2A vs LD02ZD105KAB4A |
| 0402BW105K100Y | Knowles Capacitors | Check for Price | Ceramic Capacitor, Ceramic, | 0402ZD105KAT2A vs 0402BW105K100Y |
| C0402X5R100-105KPU | VENKEL LTD | Check for Price | Ceramic Capacitor, Ceramic, | 0402ZD105KAT2A vs C0402X5R100-105KPU |
| CL05A105KP5NNNH | Samsung Electro-Mechanics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 1uF, 0402, | 0402ZD105KAT2A vs CL05A105KP5NNNH |
0402ZD105KAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the 0402ZD105KAT2A capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the 0402ZD105KAT2A capacitor is suitable for high-reliability applications, as it meets the requirements of AEC-Q200 and is designed for use in automotive and other high-reliability industries.
-
The 0402ZD105KAT2A capacitor has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours without being baked.
-
No, the 0402ZD105KAT2A capacitor is rated for a maximum voltage of 10V, and should not be used in high-voltage applications. For high-voltage applications, a different capacitor with a higher voltage rating should be selected.
-
Yes, the 0402ZD105KAT2A capacitor is RoHS and REACH compliant, meaning it meets the requirements of the European Union's Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations.
