Capacitors / Ceramic Capacitors / 0402YD473KAT2A
Datasheets
0402YD473KAT2A by:

Capacitor, Ceramic, Chip, General Purpose, 0.047uF, 16V, ±10%, X5R, 0402 (1005 mm), Sn/NiBar, -55º ~ +85ºC, 7" Reel

Part Details for 0402YD473KAT2A by Kyocera AVX Components

Results Overview of 0402YD473KAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

0402YD473KAT2A Information

0402YD473KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 0402YD473KAT2A

Part # Distributor Description Stock Price Buy
DISTI # 581-0402YD473K
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05AR51C473KH NEW GLOBAL PN 16V 0.047u A 581-KGM05AR51C473KH RoHS: Compliant 89925
  • 1 $0.1400
  • 10 $0.1300
  • 100 $0.1290
  • 10,000 $0.0250
  • 20,000 $0.0210
  • 50,000 $0.0200
$0.0200 / $0.1400 Buy Now
DISTI # V72:2272_07470868
Arrow Electronics Cap Ceramic 0.047uF 16V X5R 10% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 2041 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2145 Container: Cut Strips Americas - 17953
  • 1 $0.0516
  • 10 $0.0511
  • 25 $0.0506
  • 100 $0.0501
  • 250 $0.0496
  • 500 $0.0495
  • 1,000 $0.0430
  • 3,000 $0.0426
  • 6,000 $0.0220
  • 15,000 $0.0107
$0.0107 / $0.0516 Buy Now
DISTI # V36:1790_07470868
Arrow Electronics Cap Ceramic 0.047uF 16V X5R 10% Pad SMD 0402 85°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Americas - 10000
Buy Now
Future Electronics 0402 47 nF 16 V ±10 % Tolerance X5R Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks Container: Reel 20000
Reel
  • 10,000 $0.0118
  • 20,000 $0.0116
  • 30,000 $0.0115
  • 40,000 $0.0114
  • 50,000 $0.0112
$0.0112 / $0.0118 Buy Now
Future Electronics 0402 47 nF 16 V ±10 % Tolerance X5R Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Container: Cut Tape/Mini-Reel 8270
Cut Tape/Mini-Reel
  • 1 $0.1000
  • 20 $0.0733
  • 150 $0.0554
  • 1,000 $0.0385
  • 5,000 $0.0242
$0.0242 / $0.1000 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 13596
  • 1 $0.0540
  • 557 $0.0180
  • 2,779 $0.0108
$0.0108 / $0.0540 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 13211
  • 1 $1.0000
  • 4,001 $0.1750
  • 9,144 $0.1500
$0.1500 / $1.0000 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 8000
  • 1 $0.4720
  • 236 $0.1416
  • 2,826 $0.0944
$0.0944 / $0.4720 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 7516
  • 1 $0.0750
  • 401 $0.0250
  • 2,001 $0.0075
$0.0075 / $0.0750 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 6800
  • 1 $0.0960
  • 314 $0.0320
  • 1,564 $0.0192
$0.0192 / $0.0960 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 5600
  • 1 $0.0750
  • 401 $0.0250
  • 2,001 $0.0150
$0.0150 / $0.0750 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 16 V, X5R, 0.047 UF, SURFACE MOUNT, 0402 4280
  • 1 $0.0512
  • 626 $0.0192
  • 2,605 $0.0096
$0.0096 / $0.0512 Buy Now
DISTI # 0402YD473KAT2A
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05AR51C473KH NEW GLOBAL PN 16V 0.047u A 581-KGM05AR51C473KH RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 10000
In Stock
  • 10,000 $0.0109
  • 20,000 $0.0106
  • 30,000 $0.0104
  • 50,000 $0.0102
  • 100,000 $0.0100
  • 250,000 $0.0098
$0.0098 / $0.0109 Buy Now
LCSC 16V 47nF X5R 10% 0402 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 19900
  • 100 $0.0070
  • 1,000 $0.0056
  • 3,000 $0.0048
  • 10,000 $0.0043
  • 50,000 $0.0039
  • 100,000 $0.0036
$0.0036 / $0.0070 Buy Now

Part Details for 0402YD473KAT2A

0402YD473KAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

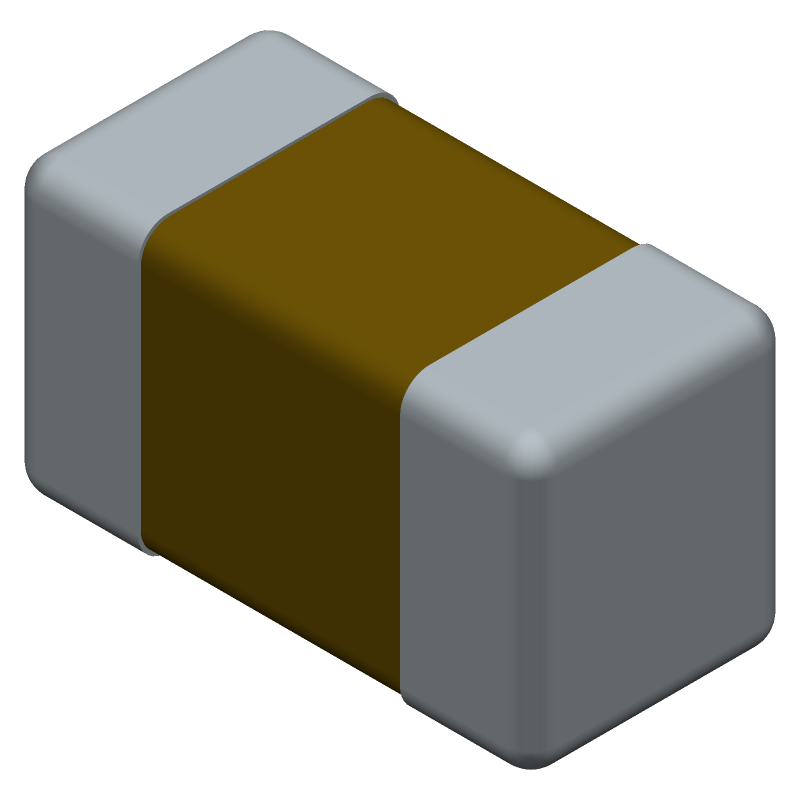

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0402YD473KAT2A Part Data Attributes

Parametric Data
0402YD473KAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
0402YD473KAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 0.047uF, 16V, ±10%, X5R, 0402 (1005 mm), Sn/NiBar, -55º ~ +85ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.56 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for 0402YD473KAT2A

This table gives cross-reference parts and alternative options found for 0402YD473KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0402YD473KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
KGM05AR51C473KH Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.047uF, Surface Mount, 0402, CHIP 0402YD473KAT2A vs KGM05AR51C473KH
CMC-016/473KX50402T13 Tecate Group Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs CMC-016/473KX50402T13
AU02YD473KA74A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs AU02YD473KA74A
CE0402-473-K016XC RCD Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs CE0402-473-K016XC
C0402X5R473K160NJC Eyang Technology Development Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs C0402X5R473K160NJC
CE0402-473-K016XTW RCD Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs CE0402-473-K016XTW
0402YD473KAT7A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.047uF, Surface Mount, 0402, CHIP 0402YD473KAT2A vs 0402YD473KAT7A
C0402X5R473K160NTC Eyang Technology Development Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs C0402X5R473K160NTC
C0402X5R160-473KPBD VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs C0402X5R160-473KPBD
CE0402A-473-K016XCS RCD Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 0.047uF, 0402, 0402YD473KAT2A vs CE0402A-473-K016XCS

0402YD473KAT2A Related Parts

0402YD473KAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 0402YD473KAT2A capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the 0402YD473KAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • Yes, the 0402YD473KAT2A capacitor meets the requirements for automotive applications, including AEC-Q200 qualification and PPAP (Production Part Approval Process) documentation.

  • The 0402YD473KAT2A capacitor has an MSL rating of 1, which means it can withstand exposure to moisture for up to 30 days without requiring baking or drying.

  • Yes, the 0402YD473KAT2A capacitor is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
