Capacitors / Ceramic Capacitors / 0402YC104KAT4A
Datasheets
0402YC104KAT4A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 16V, ±10%, X7R, 0402 (1005 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel

Part Details for 0402YC104KAT4A by Kyocera AVX Components

Results Overview of 0402YC104KAT4A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

0402YC104KAT4A Information

0402YC104KAT4A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 0402YC104KAT4A

Part # Distributor Description Stock Price Buy
DISTI # 08AK4790
Newark Cap, 0.1Uf, 16V, Mlcc, 0402, Capacitance:0.1Μf, Voltage(Dc):16V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:1.02Mm, Product Width:0.5Mm Rohs Compliant: Yes |Kyocera Avx 0402YC104KAT4A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 76822
  • 1 $0.0560
$0.0560 Buy Now
DISTI # 76T4026
Newark R102 Commercial/T&r Rohs Compliant: Yes |Kyocera Avx 0402YC104KAT4A RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 10,000 $0.0080
$0.0080 Buy Now
DISTI # 478-KGM05AR71C104KNCT-ND
DigiKey CAP CER 0.1UF 16V X7R 0402 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 398013
In Stock
  • 1 $0.1700
  • 10 $0.0430
  • 100 $0.0253
  • 50,000 $0.0207
$0.0207 / $0.1700 Buy Now
DISTI # KGM05AR71C104KN
Avnet Americas SMD Multilayer Ceramic Capacitor, 0.1 ?F, 16 V, 0402 [1005 Metric], ? 10%, X7R - Tape and Reel (Alt: KGM05AR71C104KN) RoHS: Compliant Min Qty: 50000 Package Multiple: 50000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 50,000 $0.0017
  • 100,000 $0.0016
  • 200,000 $0.0016
  • 300,000 $0.0016
  • 400,000 $0.0015
$0.0015 / $0.0017 Buy Now
DISTI # 581-0402YC104KAT4A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05AR71C104KN NEW GLOBAL PN 16V 0.1uF A 581-KGM05AR71C104KN RoHS: Compliant 102703
  • 1 $0.1000
  • 10 $0.0110
  • 100 $0.0070
  • 500 $0.0060
  • 1,000 $0.0050
  • 10,000 $0.0040
  • 50,000 $0.0030
$0.0030 / $0.1000 Buy Now
Future Electronics 0.1µF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric) RoHS: Compliant pbFree: Yes Min Qty: 50000 Package Multiple: 50000 Lead time: 14 Weeks Container: Reel 100000
Reel
  • 50,000 $0.0016
  • 150,000 $0.0015
  • 200,000 $0.0015
  • 500,000 $0.0015
  • 750,000 $0.0014
$0.0014 / $0.0016 Buy Now
Onlinecomponents.com Multilayer Ceramic Capacitors MLCC - SMD/SMT 16V 0.1uF X7R 0402 10% RoHS: Compliant 150000 Partner Stock
  • 50,000 $0.0633
$0.0633 Buy Now
Future Electronics 0.1�F �10% 16V Ceramic Capacitor X7R 0402 (1005 Metric) Min Qty: 50000 Package Multiple: 50000 100000
null
  • 50,000 $0.0016
  • 150,000 $0.0016
  • 200,000 $0.0016
  • 500,000 $0.0015
  • 750,000 $0.0015
$0.0015 / $0.0016 Buy Now
DISTI # 0402YC104KAT4A
TME Capacitor: ceramic, MLCC, 100nF, 16V, X7R, ±10%, SMD, 0402, 330mm Min Qty: 50000 0
  • 50,000 $0.0031
$0.0031 RFQ
DISTI # KGM05AR71C104KN
Avnet Abacus SMD Multilayer Ceramic Capacitor 01 F 16 V 0402 1005 Metric 10 X7R - Tape and Reel (Alt: KGM05AR71C104KN) RoHS: Compliant Min Qty: 50000 Package Multiple: 50000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 0402YC104KAT4A
Avnet Asia SMD Multilayer Ceramic Capacitor, 0.1 ?F, 16 V, 0402 [1005 Metric], ? 10%, X7R (Alt: 0402YC104KAT4A) RoHS: Compliant Min Qty: 50000 Package Multiple: 50000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for 0402YC104KAT4A

0402YC104KAT4A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

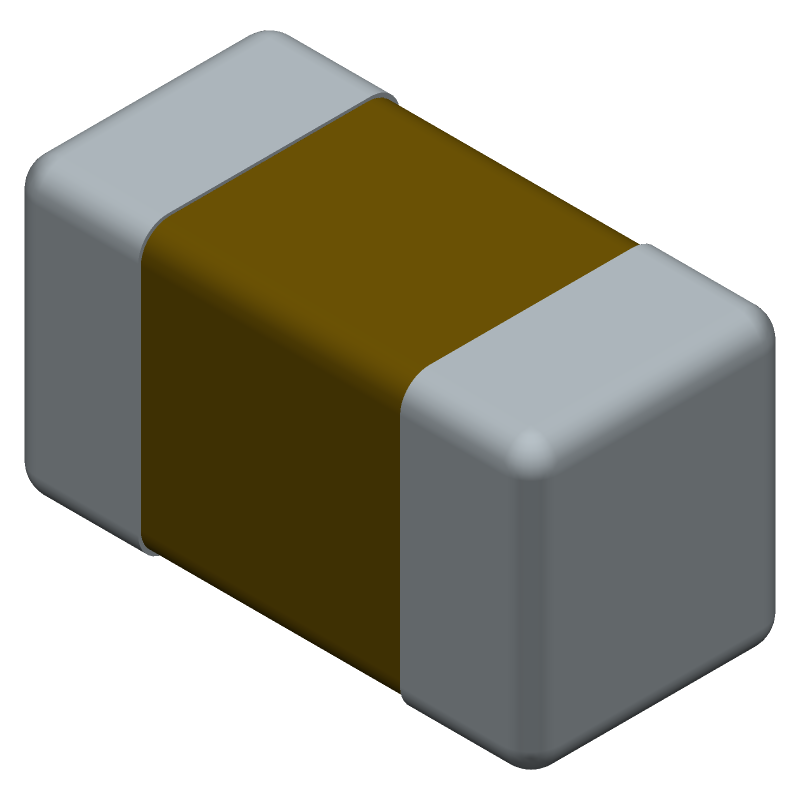

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0402YC104KAT4A Part Data Attributes

Parametric Data
0402YC104KAT4A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
0402YC104KAT4A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 16V, ±10%, X7R, 0402 (1005 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.56 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 13 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for 0402YC104KAT4A

This table gives cross-reference parts and alternative options found for 0402YC104KAT4A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0402YC104KAT4A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0402X7R104KT7AT Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP 0402YC104KAT4A vs 0402X7R104KT7AT
C0402X7R104K160NYC Eyang Technology Development Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, 0402YC104KAT4A vs C0402X7R104K160NYC
NMC0402X7R104K16TRPLP3KF NIC Components Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, X7R, -/+15ppm/Cel TC, 0.1uF, 0402 0402YC104KAT4A vs NMC0402X7R104K16TRPLP3KF
0402X104K160SNT Capax Technologies Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP 0402YC104KAT4A vs 0402X104K160SNT
C0402X7R160-104KGB VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, 0402YC104KAT4A vs C0402X7R160-104KGB
0402YC104KA72A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP 0402YC104KAT4A vs 0402YC104KA72A
CMC-016/104KX0402WFF Tecate Group Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP 0402YC104KAT4A vs CMC-016/104KX0402WFF
C0402X7R160-104KGR VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, 0402YC104KAT4A vs C0402X7R160-104KGR
C0402X7R160-104KPD VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, 0402YC104KAT4A vs C0402X7R160-104KPD
C0402X7R160-104KGE VENKEL LTD Check for Price Ceramic Capacitor, Ceramic, 0402YC104KAT4A vs C0402X7R160-104KGE

0402YC104KAT4A Related Parts

0402YC104KAT4A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the 0402YC104KAT4A capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the 0402YC104KAT4A capacitor is suitable for high-reliability applications, as it meets the requirements of AEC-Q200 and is designed for use in automotive and other high-reliability industries.

  • The maximum operating voltage derating for the 0402YC104KAT4A capacitor is 80% of the rated voltage, which is 16V for this specific part.

  • Yes, the 0402YC104KAT4A capacitor is rated for operation up to 125°C, making it suitable for use in high-temperature applications.

  • Yes, the 0402YC104KAT4A capacitor is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
