Capacitors / Ceramic Capacitors / 04023A470FAT2A
Datasheets
04023A470FAT2A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 47pF, 25V, ±1%, C0G/NP0, 0402 (1005 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel

Part Details for 04023A470FAT2A by Kyocera AVX Components

Results Overview of 04023A470FAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

04023A470FAT2A Information

04023A470FAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 04023A470FAT2A

Part # Distributor Description Stock Price Buy
DISTI # 55J1443
Newark Capacitor, ceramic,47Pf,25Vdc,1-% Tol,1+% Tol, c0G-Tc Code,-30,30Ppm-Tc Rohs Compliant: Yes |Kyocera Avx 04023A470FAT2A RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 10,000 $0.1590
  • 20,000 $0.1440
  • 30,000 $0.1340
  • 50,000 $0.1240
$0.1240 / $0.1590 Buy Now
DISTI # KGM05ACG1E470FH
Avnet Americas Multilayer Ceramic Capacitor, 47 pF, 25 V, ? 1%, C0G (NP0), 0402 [1005 Metric] - Tape and Reel (Alt: KGM05ACG1E470FH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.1056
  • 20,000 $0.1040
  • 40,000 $0.1024
  • 60,000 $0.1008
  • 80,000 $0.0989
$0.0989 / $0.1056 Buy Now
DISTI # 581-04023A470FAT2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05ACG1E470FH NEW GLOBAL PN 25V 47pF C A 581-KGM05ACG1E470FH RoHS: Compliant 9844
  • 1 $0.4900
  • 10 $0.3190
  • 100 $0.2250
  • 500 $0.1830
  • 1,000 $0.1740
  • 10,000 $0.1470
  • 50,000 $0.1350
$0.1350 / $0.4900 Buy Now
Bristol Electronics   8655
RFQ
DISTI # 04023A470FAT2A
IBS Electronics CAPACITOR CERAMIC 47PF 25VDC 1-% TOL 1&#x2B, % TOL C0G-TC CODE -30 30PPM-TC ROHS COMPLIANT: YES Min Qty: 10000 Package Multiple: 1 0
  • 10,000 $0.1339
$0.1339 Buy Now
DISTI # KGM05ACG1E470FH
Avnet Abacus Multilayer Ceramic Capacitor 47 pF 25 V 1 C0G NP0 0402 1005 Metric - Tape and Reel (Alt: KGM05ACG1E470FH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 04023A470FAT2A
Avnet Asia Multilayer Ceramic Capacitor, 47 pF, 25 V, ? 1%, C0G (NP0), 0402 [1005 Metric] (Alt: 04023A470FAT2A) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for 04023A470FAT2A

04023A470FAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

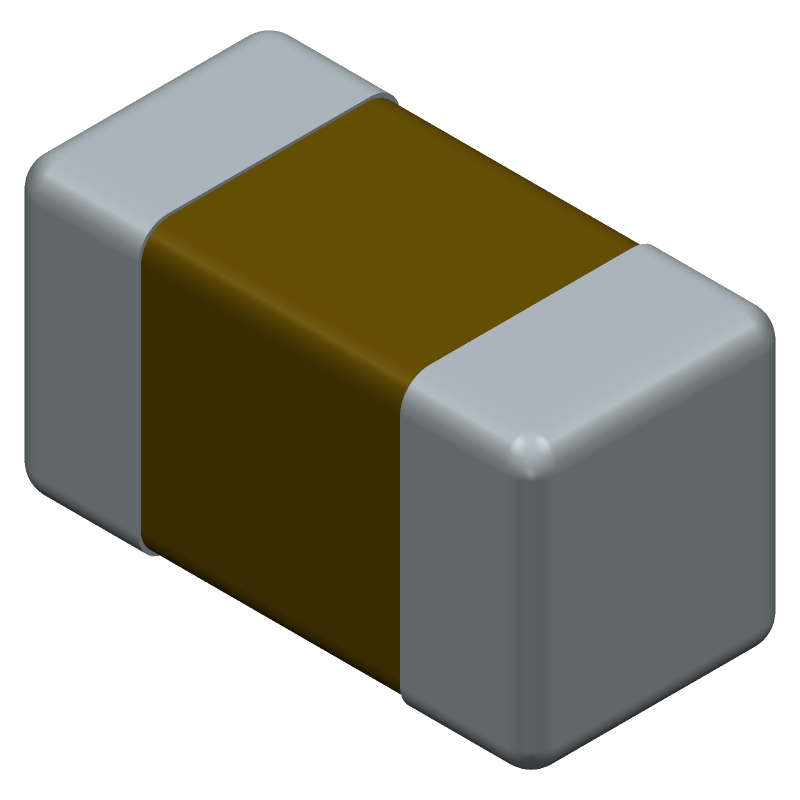

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

04023A470FAT2A Part Data Attributes

Parametric Data
04023A470FAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
04023A470FAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 47pF, 25V, ±1%, C0G/NP0, 0402 (1005 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.000047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.56 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 1%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 1%
Rated (DC) Voltage (URdc) 25 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for 04023A470FAT2A

This table gives cross-reference parts and alternative options found for 04023A470FAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 04023A470FAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0402N470F250VT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, 04023A470FAT2A vs 0402N470F250VT
BC023A470FZJ6SA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs BC023A470FZJ6SA3
C0402C0G250-470FGP VENKEL LTD Check for Price Ceramic Capacitor, Ceramic, 04023A470FAT2A vs C0402C0G250-470FGP
SR0402NPO470F1NG2 Presidio Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs SR0402NPO470F1NG2
BC023A470FZJ6AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs BC023A470FZJ6AA0
BC023A470FZB1SA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs BC023A470FZB1SA3
CE0402A-470-F025GBW RCD Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, 04023A470FAT2A vs CE0402A-470-F025GBW
BC023A470FZJ3SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs BC023A470FZJ3SA1
C0402COG250-470FGB VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, 04023A470FAT2A vs C0402COG250-470FGB
BC023A470FZB3SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP 04023A470FAT2A vs BC023A470FZB3SA2

04023A470FAT2A Related Parts

04023A470FAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 04023A470FAT2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.

  • Yes, the 04023A470FAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • Yes, the 04023A470FAT2A capacitor meets the requirements for automotive applications, including AEC-Q200 qualification and compliance with RoHS and REACH regulations.

  • The 04023A470FAT2A capacitor has an MSL rating of 1, which means it can withstand exposure to moisture for up to 30 days without requiring baking or drying.

  • Yes, the 04023A470FAT2A capacitor is rated for operation up to 125°C, making it suitable for high-temperature applications.
