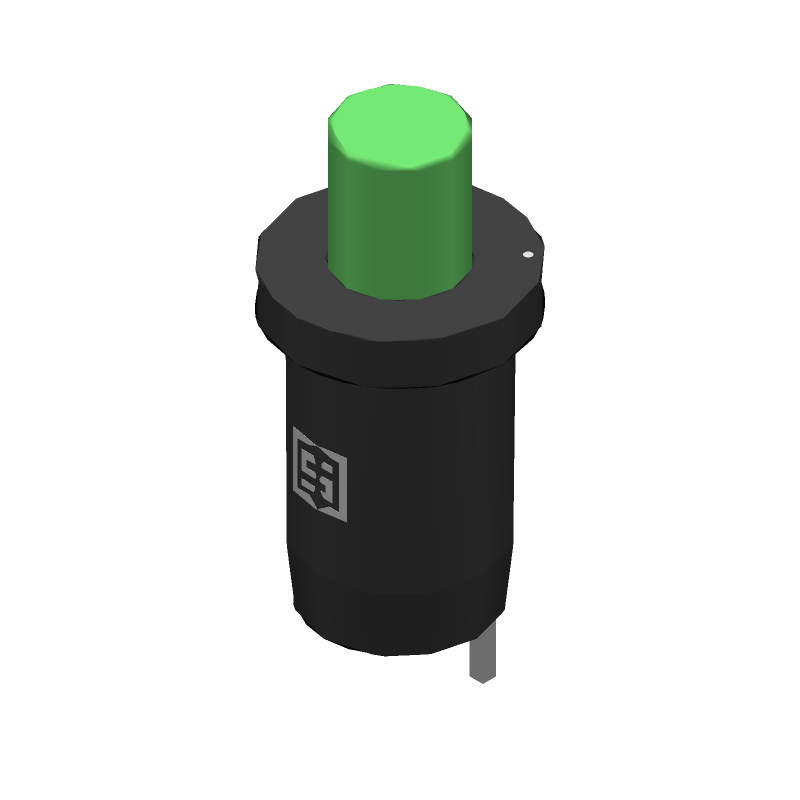

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0041.9141.3107 by Schurter Electronic Components
Results Overview of 0041.9141.3107 by Schurter Electronic Components
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
0041.9141.3107 Information
0041.9141.3107 by Schurter Electronic Components is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 0041.9141.3107
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N4049
|
Newark | Pb Switch, Spst-No, 0.2A, 60V/50V, Panel, Product Range:-, Panel Cutout Diameter:8Mm, Contact Configuration:Spst-No, Switch Operation:Off-(On), Pushbutton Actuator Style:Round, Actuator/Cap Colour:Red, Contact Current Ac Max:200Ma Rohs Compliant: Yes |Schurter 0041.9141.3107 RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 200 |
|
$5.8700 / $7.2700 | Buy Now |
|
DISTI #
486-3489-ND
|
DigiKey | SWITCH PUSH SPST-NO 200MA 60V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
197 In Stock |
|
$4.7301 / $7.3700 | Buy Now |
|
DISTI #
0041.9141.3107
|
Avnet Americas | LDT N.O. 1P UNBEL./NON-ILL. - Boxed Product (Development Kits) (Alt: 0041.9141.3107) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 11 Weeks, 3 Days Container: Box | 0 |
|
$3.6836 / $3.9122 | Buy Now |
|
DISTI #
693-0041.9141.3107
|
Mouser Electronics | Pushbutton Switches LDT N.O. 1P UNBEL./NON-ILL. | 250 |
|
$4.7300 / $7.2800 | Buy Now |
|
DISTI #
70472449
|
RS | SWITCH PUSH SPST-NO 200MA 60V Min Qty: 200 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$7.0400 | RFQ |
|
|
Onlinecomponents.com | LDT N.O. 1P UNBEL./NON-ILL. RoHS: Compliant |
100 In Stock 200 Factory Stock |
|
$3.9500 / $7.1960 | Buy Now |
|
DISTI #
62346189
|
Verical | Switch Push Button N.O. SPST Round Button 0.2A 60VAC 50VDC Momentary Panel Mount/Through Hole PC Pins Box RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2221 | Americas - 100 |
|
$5.1870 / $9.3600 | Buy Now |
|
DISTI #
87361681
|
Verical | Switch Push Button N.O. SPST Round Button 0.2A 60VAC 50VDC Momentary Panel Mount/Through Hole PC Pins Box RoHS: Compliant Min Qty: 12 Package Multiple: 1 | Americas - 43 |
|
$2.9260 / $6.3140 | Buy Now |
|
DISTI #
0041.9141.3107
|
TME | Switch: push-button, Pos: 2, SPST-NO, 0.2A/48VAC, 0.2A/48VDC, IP40 Min Qty: 1 | 67 |
|
$2.6800 / $5.8800 | Buy Now |
|
DISTI #
0041.9141.3107
|
IBS Electronics | SCHURTER 0041.9141.3107 PUSHBUTTON SWITCH SPST-NO OFF-(ON) 60 V 50 V 200 MA SOLDER Min Qty: 5 Package Multiple: 1 | 100 |
|
$5.1350 / $9.3548 | Buy Now |
Part Details for 0041.9141.3107
0041.9141.3107 CAD Models
0041.9141.3107 Part Data Attributes
|
|
0041.9141.3107
Schurter Electronic Components
Buy Now
Datasheet
|
Compare Parts:
0041.9141.3107
Schurter Electronic Components
Pushbutton Switch, SPST, Momentary, 0.2A, 50VDC, Solder Terminal, Panel Mount,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SCHURTER AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Factory Lead Time | 11 Weeks, 3 Days | |
| Samacsys Manufacturer | SCHURTER | |
| Actuator Color | RED | |
| Actuator Material | POLYCARBONATE | |
| Actuator Type | ROUND BUTTON TYPE | |
| Body Breadth | 10 mm | |
| Body Height | 8.7 mm | |
| Body Length or Diameter | 10 mm | |
| Center Contact Material | BRASS | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 0.2A@60VAC | |
| Contact Current(AC)-Max | 0.2 A | |
| Contact Current(DC)-Max | 0.2 A | |
| Contact (DC) Max Rating R Load | 0.2A@50VDC | |
| Contact Resistance | 0.025 mΩ | |
| Contact Voltage(AC)-Max | 60 V | |
| Contact Voltage(DC)-Max | 50 V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | BRASS | |
| End Contact Plating | SILVER | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 10000000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Force-Max | 1.8 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Sealing | IP40 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.134 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
0041.9141.3107 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
-
Yes, the 0041.9141.3107 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
-
The 0041.9141.3107 is designed for use with 5x20mm fuses, but it may not be compatible with all types of fuses. Check the fuse manufacturer's specifications to ensure compatibility.
-
The operating temperature range of the 0041.9141.3107 is -40°C to 125°C, as specified in the datasheet.
-
The 0041.9141.3107 has a protection rating of IP40, which means it is protected against solid objects larger than 1mm, but not against water or moisture. It is not recommended for use in humid or wet environments.
