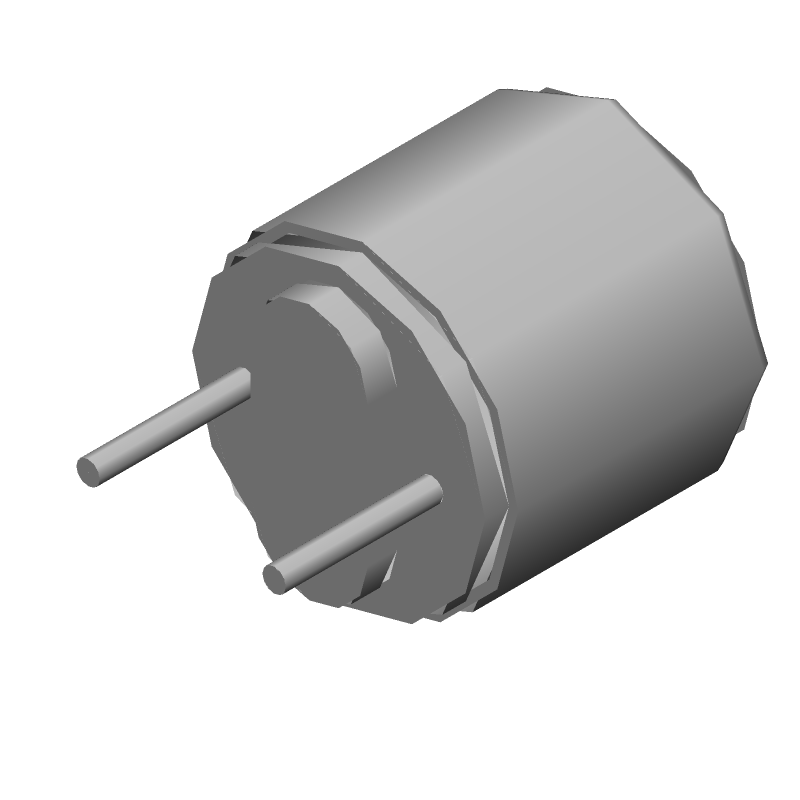

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 0034.6618 by Schurter Electronic Components
Results Overview of 0034.6618 by Schurter Electronic Components
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
0034.6618 Information
0034.6618 by Schurter Electronic Components is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 0034.6618
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88K2048
|
Newark | Fuse, Pcb, 2A, 250V, Time Delay, Fuse Current:2A, Voltage Rating Vac:250Vac, Product Range:Mst 250 Series, Voltage Rating Vdc:125Vdc, Blow Characteristic:Time Delay, Fuse Case Style:Radial Leaded, Breaking Capacity Current Ac:35A Rohs Compliant: Yes |Schurter 0034.6618 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 448 |
|
$0.4940 | Buy Now |
|
DISTI #
486-1138-ND
|
DigiKey | FUSE BOARD MNT 2A 250VAC 125VDC Min Qty: 1 Lead time: 13 Weeks Container: Bulk |
519 In Stock |
|
$0.4236 / $1.1500 | Buy Now |
|
DISTI #
88K2048
|
Avnet Americas | MST 250 FUSE 2A T - Bulk (Alt: 88K2048) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 6 Days Container: Bulk | 448 Partner Stock |
|
$0.5970 / $0.6550 | Buy Now |
|
DISTI #
0034.6618
|
Avnet Americas | MST 250 FUSE 2A T - Bag (Alt: 0034.6618) RoHS: Compliant Min Qty: 800 Package Multiple: 100 Lead time: 13 Weeks, 0 Days Container: Bag | 0 |
|
$0.4173 / $0.4581 | Buy Now |
|
DISTI #
693-0034.6618
|
Mouser Electronics | Fuses with Leads - Through Hole MST 250 2A T 4.3 RoHS: Compliant | 1033 |
|
$0.4100 / $0.4200 | Buy Now |
|
DISTI #
70160207
|
RS | Subminiature Fuse, No Reset, 2A, 250V, Temperature Resistant, MSF 125 Series Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 236 |
|
$0.4980 | Buy Now |
|
|
Future Electronics | MST250 Series Time Lag 250 V 2 A Ø 8.5 x 8.5 mm Subminiature Radial Fuse RoHS: Compliant pbFree: Yes Min Qty: 100 Package Multiple: 100 Lead time: 13 Weeks Container: Bag | 7500Bag |
|
$0.4250 / $0.4650 | Buy Now |
|
|
Onlinecomponents.com | Fuse - PCB Leaded - 2 A - 250 VAC - MST 250 Series - 250 VDC - Time Delay - Radial Leaded. RoHS: Compliant |
1453 In Stock 25600 Factory Stock |
|
$0.3748 / $0.4381 | Buy Now |
|
DISTI #
78397982
|
Verical | Fuse Subminiature Slow Blow Acting 2A 250V Radial 8.5 X 8.5mm Thermoplastic Box CCC/CSA/PSE/UL/VDE/cULus RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2247 | Americas - 5200 |
|
$0.5346 / $0.6667 | Buy Now |
|
DISTI #
87350589
|
Verical | Fuse Subminiature Slow Blow Acting 2A 250V Radial 8.5 X 8.5mm Thermoplastic Box CCC/CSA/PSE/UL/VDE/cULus RoHS: Compliant Min Qty: 166 Package Multiple: 1 | Americas - 3342 |
|
$0.4734 | Buy Now |
Part Details for 0034.6618
0034.6618 CAD Models
0034.6618 Part Data Attributes
|
|
0034.6618
Schurter Electronic Components
Buy Now
Datasheet
|
Compare Parts:
0034.6618
Schurter Electronic Components
Electric Fuse, Time Lag Blow, 2A, 250VAC, 125VDC, 35A (IR), Through Hole, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SCHURTER AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | SCHURTER | |
| Additional Feature | RATED BREAKING CAPACITY AT 63 VDC: 50 A | |
| Blow Characteristic | TIME LAG | |
| Body Height | 8.5 mm | |
| Body Length or Diameter | 8.5 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | 34 J | |
| Mounting Feature | THROUGH HOLE | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | BAG | |
| Pre-arcing Time-Min | 20 ms | |
| Rated Breaking Capacity | 35 A | |
| Rated Current | 2 A | |
| Rated Voltage(AC) | 250 V | |
| Rated Voltage(DC) | 63 V | |
| Reference Standard | CCC; CE; CSA; CUL; IEC; KTL; METI; PSE; UKCA; UL; VDE | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | PIN WIRE |
Alternate Parts for 0034.6618
This table gives cross-reference parts and alternative options found for 0034.6618. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0034.6618, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 0034.6816 | Schurter Electronic Components | $0.7935 | Electric Fuse, Time Lag Blow, 1.25A, 250VAC, 125VDC, 35A (IR), Through Hole, ROHS COMPLIANT | 0034.6618 vs 0034.6816 |
| 0034.6716 | Schurter Electronic Components | $1.0685 | Electric Fuse, Time Lag Blow, 1.25A, 250VAC, 125VDC, 35A (IR), Through Hole, ROHS COMPLIANT | 0034.6618 vs 0034.6716 |
| 0034.6719 | Schurter Electronic Components | $1.0736 | Electric Fuse, Time Lag Blow, 2.5A, 250VAC, 125VDC, 35A (IR), Through Hole, ROHS COMPLIANT | 0034.6618 vs 0034.6719 |
| 0034.6717 | Schurter Electronic Components | $1.1351 | Electric Fuse, Time Lag Blow, 1.6A, 250VAC, 125VDC, 35A (IR), Through Hole, ROHS COMPLIANT | 0034.6618 vs 0034.6717 |
| 34.6716 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 1.25A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6716 |
| 34.6815 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 1A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6815 |
| 34.6718 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 2A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6718 |
| 34.6714 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 0.8A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6714 |
| 34.6819 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 2.5A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6819 |
| 34.6619 | Schurter Electronic Components | Check for Price | Electric Fuse, TIME LAG BLOW ELECTRIC FUSE, 2.5A, 250VAC, 125VDC, 35A (IR), THROUGH HOLE, ROHS COMPLIANT | 0034.6618 vs 34.6619 |
0034.6618 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
-
No, the 0034.6618 is designed for use with fuses rated up to 32V DC, and using it with higher voltage ratings may compromise safety and reliability.
-
The 0034.6618 is designed for use with 5x20mm fuses, but it may not be compatible with all types of fuses, such as ceramic or high-current fuses. Check the manufacturer's recommendations for compatible fuse types.
-
The 0034.6618 is rated for operation up to 85°C, but it's recommended to derate the current rating at higher temperatures. Consult the manufacturer's application notes for specific guidance.
-
The 0034.6618 is designed for use in general-purpose applications, but it may not be suitable for use in harsh environments, such as those with high humidity, vibration, or exposure to chemicals. Consult the manufacturer's recommendations for environmental specifications.
